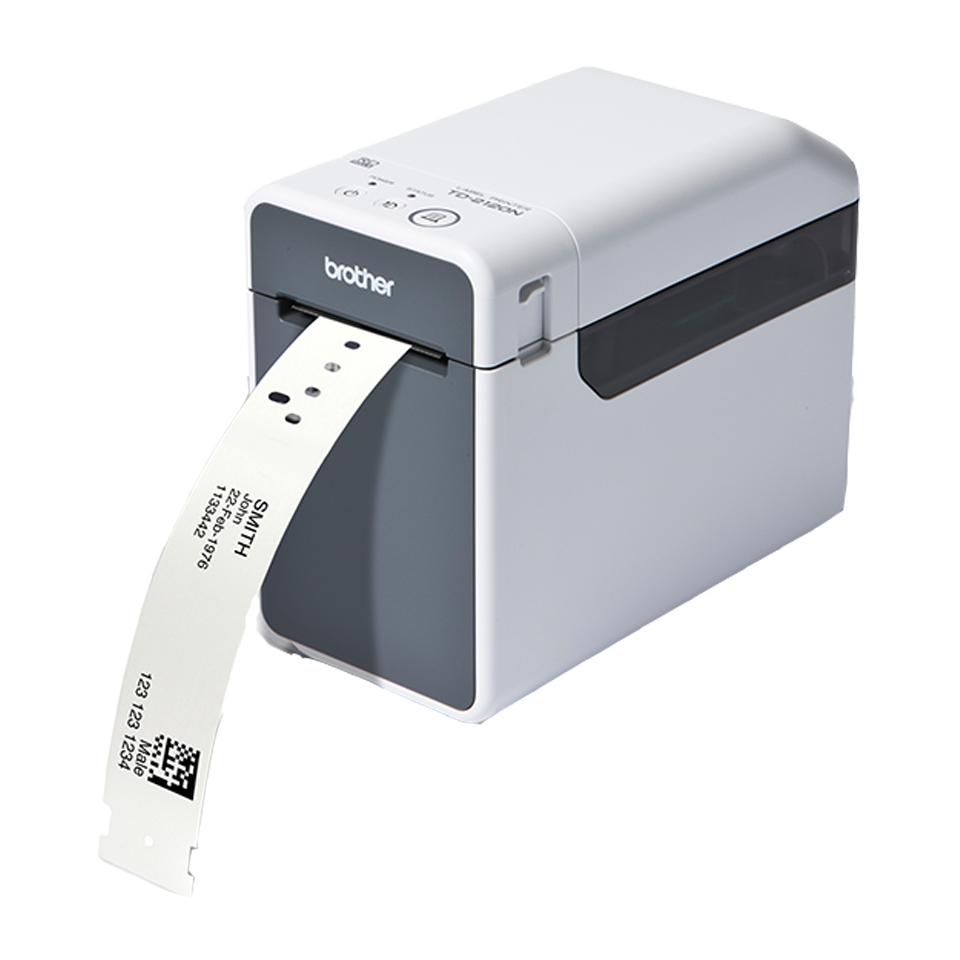

Professional portable thermal printer for healthcare

Distractions, interruptions and increased workloads are among the most common factors linked to identification and medical errors.

By providing accurate information on wristbands and labels at the point of care – quickly and without hassle – the TD-2130NHC can help improve patient safety and ease the workload of your medical staff.

It offers Healthcare organisations the opportunity to cut costs and double the output of leading competitors by being able to print both wristbands and labels from the same machine.

A wide range of accessories including rechargeable batteries, Wi-Fi and Bluetooth interfaces offer the versatility of a transportable machine either on an unpowered trolley or simply docked to a workstation.

Like other models in the range, it features a spindle-less design, allowing you to simply drop in a roll and print on demand - while the TrustSense™ smart media sensor means you can print various wristbands and labels without any special set-up.

Key Features

  • Improves patient safety by printing accurate information at the point of care
  • Automatic detection and configuration of installed roll size and type reduces printing errors
  • Print wristbands and labels from the same machine
  • Complete portability thanks to optional rechargeable batteries and Wi-Fi/Bluetooth interfaces
  • Superior quality and performance using TrustSense™ media from PDC Healthcare



The power of a desktop in a fully portable machine

In the demanding healthcare environment, reducing time spent on administrative duties whilst allowing more time for patient care is paramount.

The TD-2130NHC offers the performance, features and media capacity of a desktop printer, but with the option to go completely portable thanks to its compact footprint, wireless functionality and rechargeable battery pack. These options offer true versatility when used in conjunction with ward trolleys allowing for increased mobility and efficiency.

A simple one-touch adjustment allows for quick and easy media installation, while the sensor automatically calibrates itself to verify media size and set the proper print density – taking the guesswork out of printing, whatever media type you’re working with.

With a wide range of optional accessories available, decision makers can reduce costs by configuring the machine to fit their specific requirement eliminating the risk of unnecessary functionality.

The TD-2130NHC uses TrustSense™ specialist media from PDC that has been developed specifically for the healthcare sector, and are available in a wide range of wristband and label sizes.

Specification Details

Features and Specifications

Memory capacity 6 MB
Technology Direct thermal
Bluetooth Option: Ver.2.0 EDR (Class 2)
USB interface Ver 2.0 Full Speed
Wired network interface 10/100 Base-TX
Wirelesss network interface Option: IEEE802.11 b/g/n
Serial RS-232C
Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.34 (without options) kg
AC adaptor Yes
Power supply cord Yes
Software Yes
USB cable Yes
User guide Yes
Quick setup guide Yes
Wireless network Option: IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode
Windows Windows Server 2003 & 2008 (32 & 64 bits), Windows XP, Windows Vista, Windows 7, Windows 8
Bitmap fonts Up to 10 (depending on emulation used)
Maximum label width 63 mm
Maximum print length 1000 mm
Maximum print width 56 mm
Outline/Vector fonts Up to 4 (depending on emulation used)
Resolution (dpi) 300 x 300
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 154
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Languages English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Arabic
SDK (Software Development Kit) Yes
Rolls TrustSense™ Wristbands and Labels available from PDC
Optional accessories Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001)
Warranty 2-Year Warranty
