QL-820NWB

Label printer with Wi-Fi, wired Ethernet, Bluetooth, AirPrint and LCD display. Replaced by QL-820NWBc.

Discontinued Product

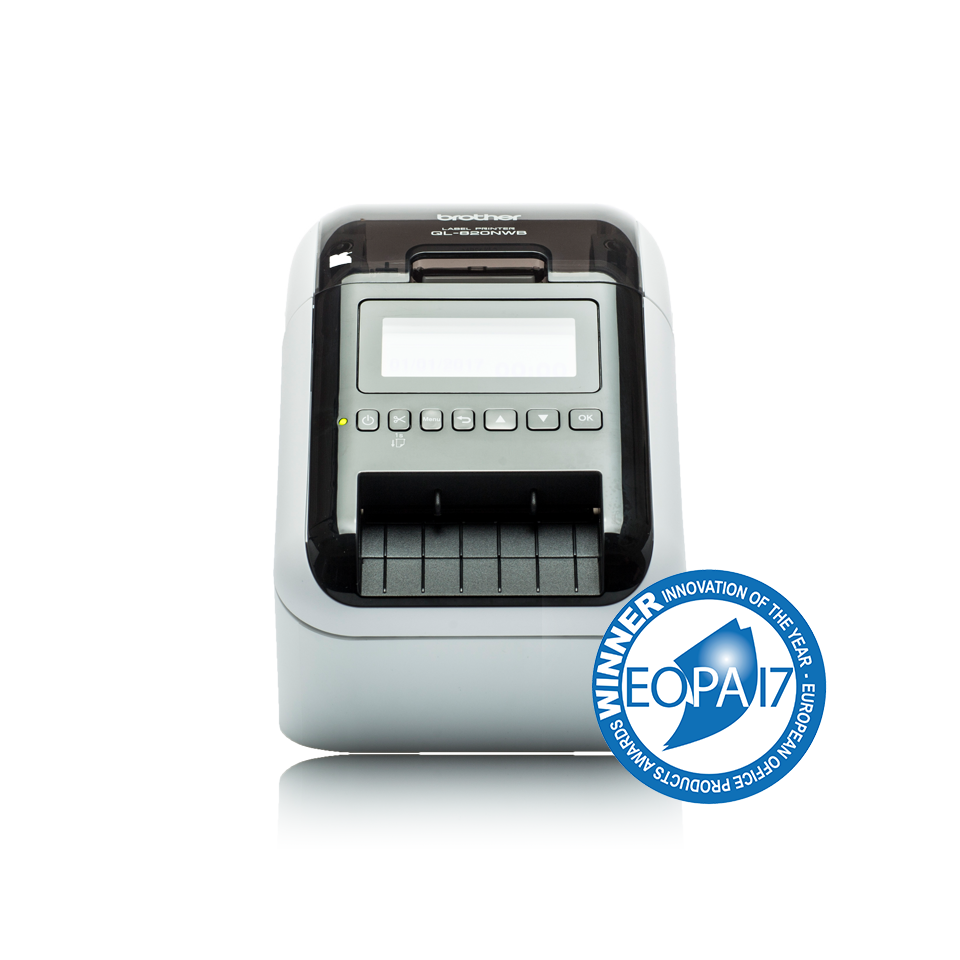

QL820NWB_main
  • Error: Generic Text label 'Warranties' not set for language 'is-IS' (Site: 'MAIN-Nordics').

Specifications

General

Maximum label width (mm) 62
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 255
Technology Direct thermal
Template upload from PC Yes

General Supplies

Type DK rolls (DK die-cut labels / DK continuous length tape)

Connectivity

AirPrint Yes
Bluetooth Ver 2.1 EDR
MFi Yes
Bluetooth profiles SPP/OPP/BIP/HCRP
USB interface Ver 2.0 (full speed)
Wi-Fi Direct Yes
Wired network interface 10/100 BASE-TX
Wirelesss network interface IEEE 802.11 b/g/n

Dimensions & weights

Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.16 kg

In the box

AC adaptor Yes
AC adaptor power cord Yes
Tape cassettes 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes

Network

Wireless network security WEP, WPA-PSK/WPA2-PSK （TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)

Operating systems & software

Macintosh Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher
Windows Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10

Printing

1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION
Black and red printing capability Yes
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 62 mm
Maximum print width 58 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300, 300 x 600
Standard print speed 110 labels per minute
Standard print speed 176 mm per second

P-touch Editor label design software

Database file compatability csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 2-Year Warranty
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

Industry uses

Confidential documents

Office

With wired and wireless network, your whole workgroup can print highly visible black and red office labels using our two-colour continuous length roll. Also print in black on both continuous roll and pre-sized labels.

Create on-demand address labels, storage box labels, file folder labels, name badge labels, indoor temporary signage, office supplies labels, office equipment labels, office furniture labels, shelf labels, cabinet labels and more.

Jam jars with a contents label with black and red text

Food Industry

Print standout compliant food labels with our two-colour continuous length roll and highlight allergens, use-by dates and special offers in black and red. With a standalone LCD touch panel and optional battery base, this label printer is perfect for printing labels at the point of preparation.

Create ingredient/allergen labels, food preparation labels, fridge shelf labels, barcode labels, product labels, pricing labels and more.

Shirts on sale

Retail

Give your sales a boost with eye-catching price tags and offers, printed in black and red on our two-colour continuous roll. This label printer has a standalone LCD touch panel and optional battery base which is ideal for printing labels on the shop floor.

Create product labels, pricing labels, promotion/special offer labels, barcode labels and indoor temporary signage.

ID card

Visitor Management

With attention grabbing black and red ID badges printed on our two-colour continuous roll you can improve visitor management. Simply highlight key information including access areas, fire points, dates and times. Wi-Fi and Bluetooth connection enables you to easily print labels from anywhere and across multiple devices including smartphones and tablets via the app. For a total mobile solution there is an optional battery base available.

Print visitor badge labels, indoor temporary signage, address labels and more.
