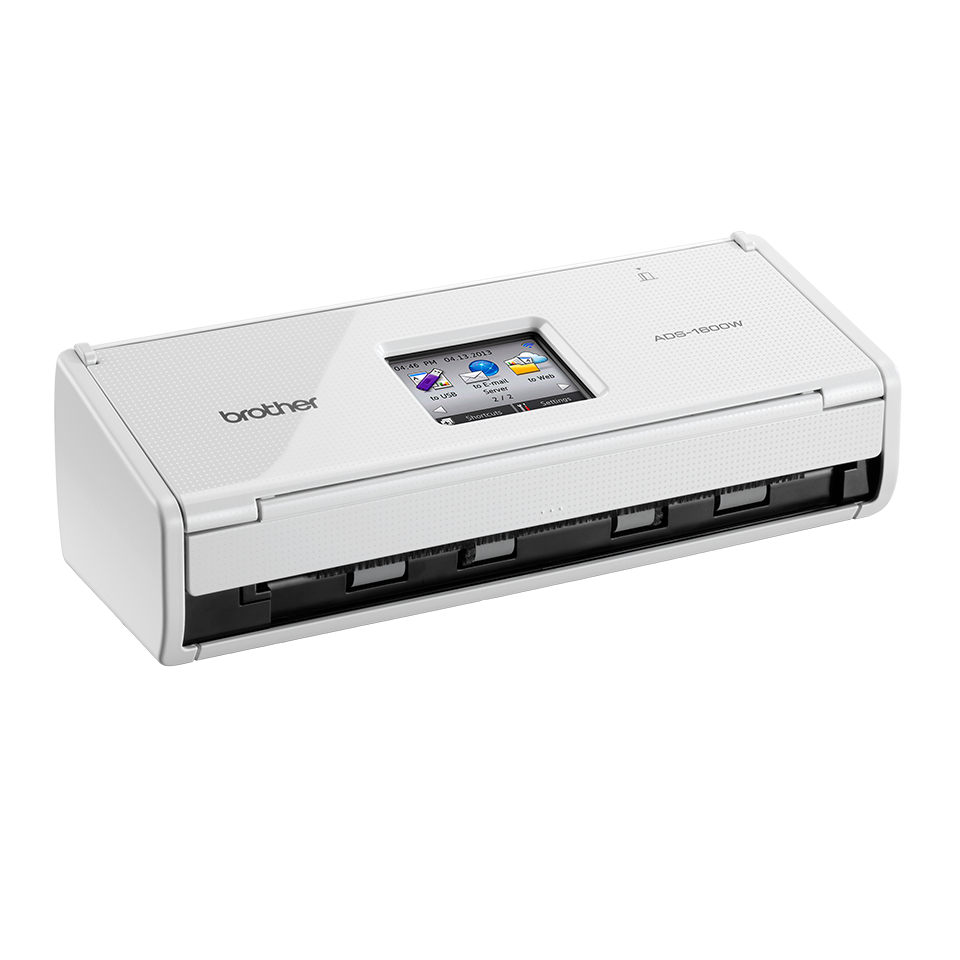

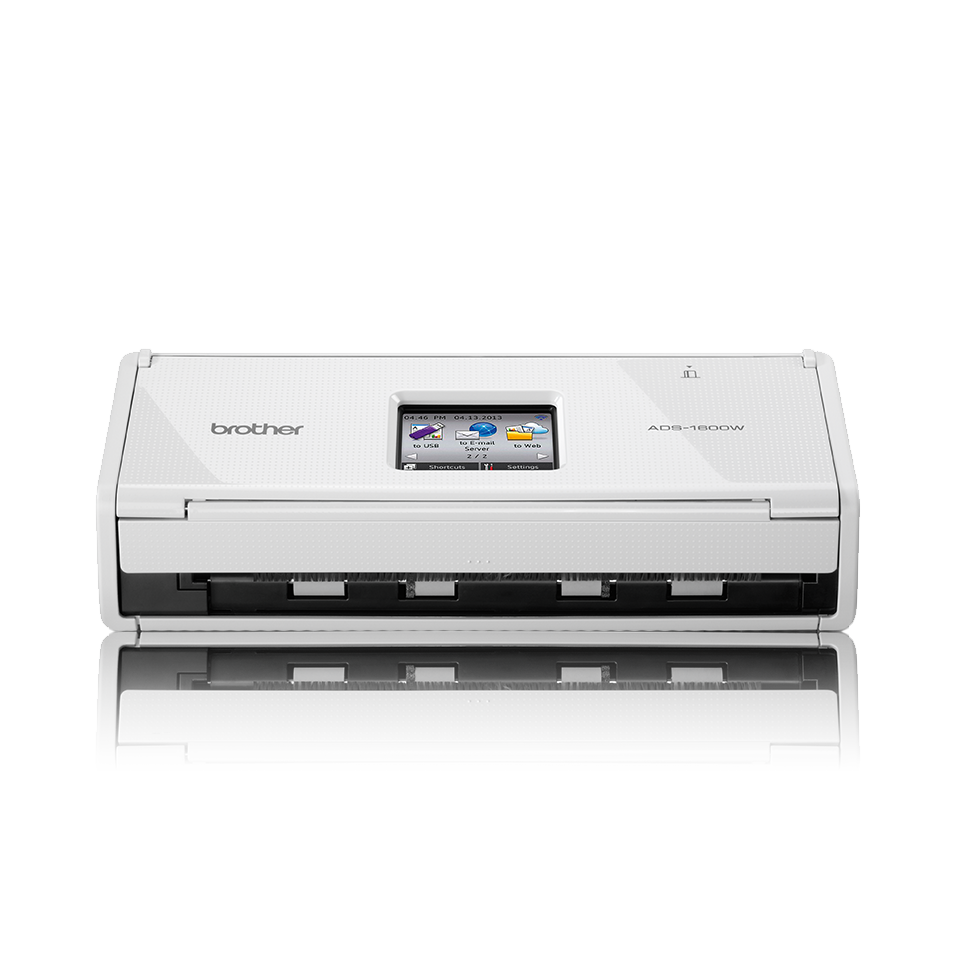

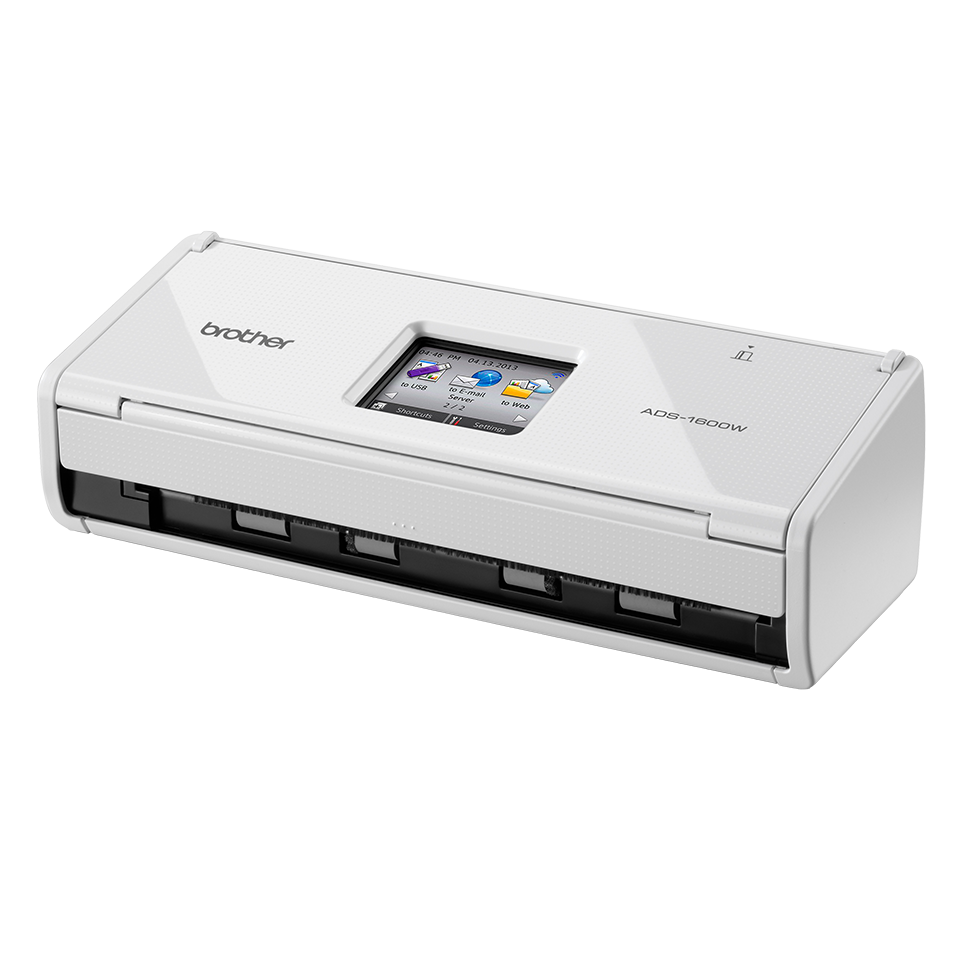

ADS-1600W

Compact Wireless 2-Sided Scanner

ADS-1600W
ADS-1600W 2
ADS-1600W 3

Find a local store

Space-saving compact design + 6.9cm LCD screen

Up to 18ppm/36ipm 2-sided colour scan speed

Up to 20-page automatic document feeder

Product Details

ADS1600W_main

Wireless and USB connection

Scan to directly to the cloud or your mobile device

Twain and ISIS scanner drivers

Key Features

  • Space-saving compact design + 6.9cm LCD screen
  • Up to 18ppm/36ipm 2-sided colour scan speed
  • Up to 20-page automatic document feeder
  • Wireless and USB connection
  • Scan to directly to the cloud or your mobile device
  • Twain and ISIS scanner drivers

About Product:

Providing 2-sided scanning in a single pass  and with a 6.8cm LCD touchscreen as well as built in wireless connectivity, the ADS-1600W enables you to scan your documents directly to the cloud or mobile device. Scan plactic ID cards via the special slot.
It is compatible with Windows® and Mac and a professional software suite is included.

Compatible with

  • Mobile device compatible icon
  • Cloud Connectivity
Specifications More about this product...

Specifications

General

Display Backlit LCD
Display size 6.8cm
Multi feed sensor Yes
RAM 256 MB
Usage type Desktop

Connectivity

USB interface High Speed USB 2.0
Wirelesss network interface Yes

Dimensions & weights

With carton 380 W x 170 D x 207 H mm
With carton 2600 g
Without carton 285 W x 103 D x 84 H mm
Weight 1600 g

Energy Consumption

Operating 14 watts
Ready mode 4 watts
Sleep mode 1.5 watts
Off 0.25 watts
Sound power 59 dB
Sound pressure 47 dBA

Environment

Operating humidity 20 - 80%
Operating temperature 5 - 35°C

In the box

AC adaptor Yes
Power supply cord Yes
Product safety guide Yes
Software disc Driver software for Windows® and Mac OS
USB cable Yes
User guide Yes
Quick setup guide Yes

Media specifications

Types and sizes Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Weights 52 - 110 gsm (multiple sheets)
ADF media sizes Paper (multiple sheets): 51-215.9x70-297mm, Paper (single sheet): 51-215.9x70x863mm, Plastic card: 51-55x70-95mm, Plastic card Thickness: 0.4-0.76mm

Network

IPv4 Yes
Network protocols ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, Custom Raw Port/Port9100, FTP Client and Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Scan), SNTP Client
Wireless network Built‐in 802.11b/g/n wireless network
Wireless network security APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES).
Wireless setup support Yes

Scanning

2-Sided scan Yes
ADF 20
Scan to email, Image, OCR, File, email server, USB, Network, Cloud
Colour A4 scan speed 18 ppm
Gray scale 256 levels
ICA compatability Yes
Interpolated scan resolution 1200 x 1200 dpi
ISIS compatability Yes
Multi feed detection Yes
Paper sensor Yes
SANE compatability Yes
Scan resolution from ADF 600 x 600
TWAIN compatability Windows 7, Windows 8, Windows Vista, Windows XP
WIA compatability Yes
Scan to feature Cloud, E-mail, File, Image, Network, OCR

Warranty

Warranty 2-Year Warranty
