RJ-3230BL - Rugged Mobile Label Printer

3 inch rugged mobile printer with Bluetooth connectivity.

View Videos (1)
View Videos (1)
RJ-3230BL - Rugged Mobile Label Printer
RJ-3230BL - Rugged Mobile Label Printer 2
RJ-3230BL - Rugged Mobile Label Printer 3
RJ-3230BL - Rugged Mobile Label Printer 4
RJ-3230BL - Rugged Mobile Label Printer 5
RJ-3230BL - Rugged Mobile Label Printer 6
RJ-3230BL - Rugged Mobile Label Printer 7

Find a local store
  • Error: Generic Text label 'Warranties' not set for language 'is-IS' (Site: 'MAIN-Nordics').

In-built durability with IP54 certification and up to 2m drop protection

USB-C, NFC and Bluetooth connectivity

Fast print speeds of up to 5ips (127mm/sec) on the move

Product Details

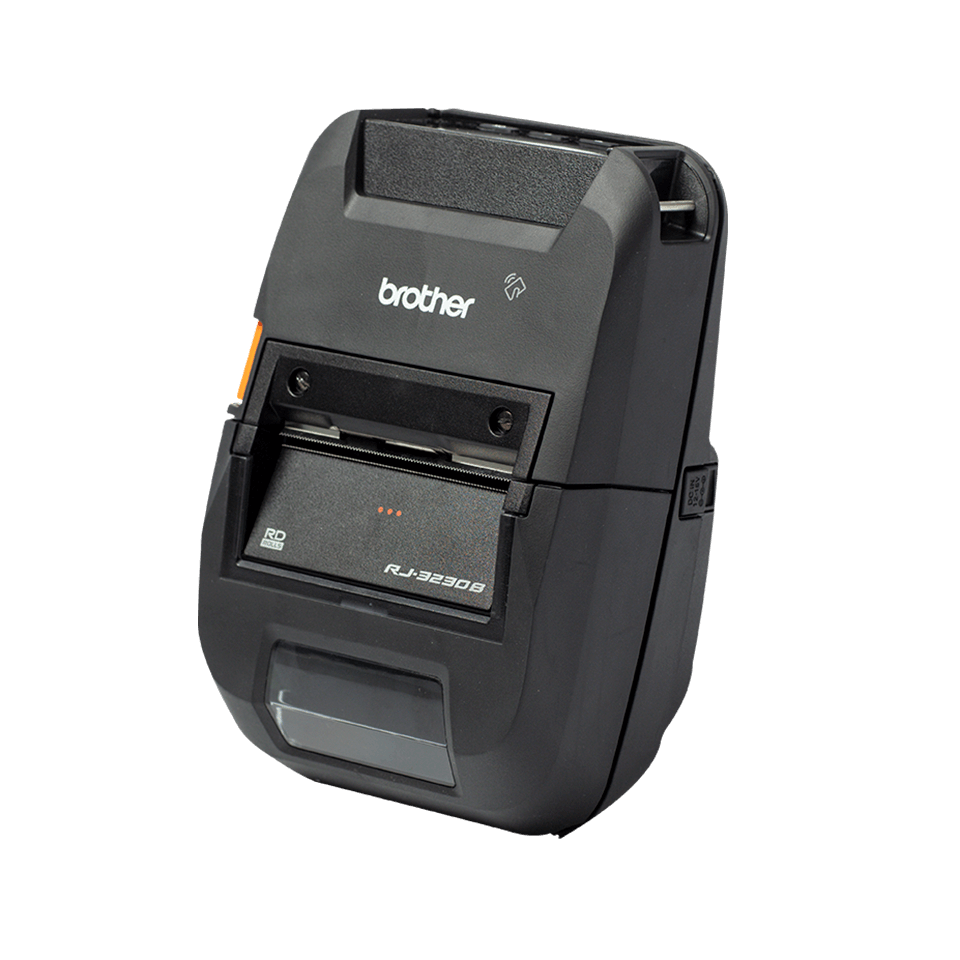

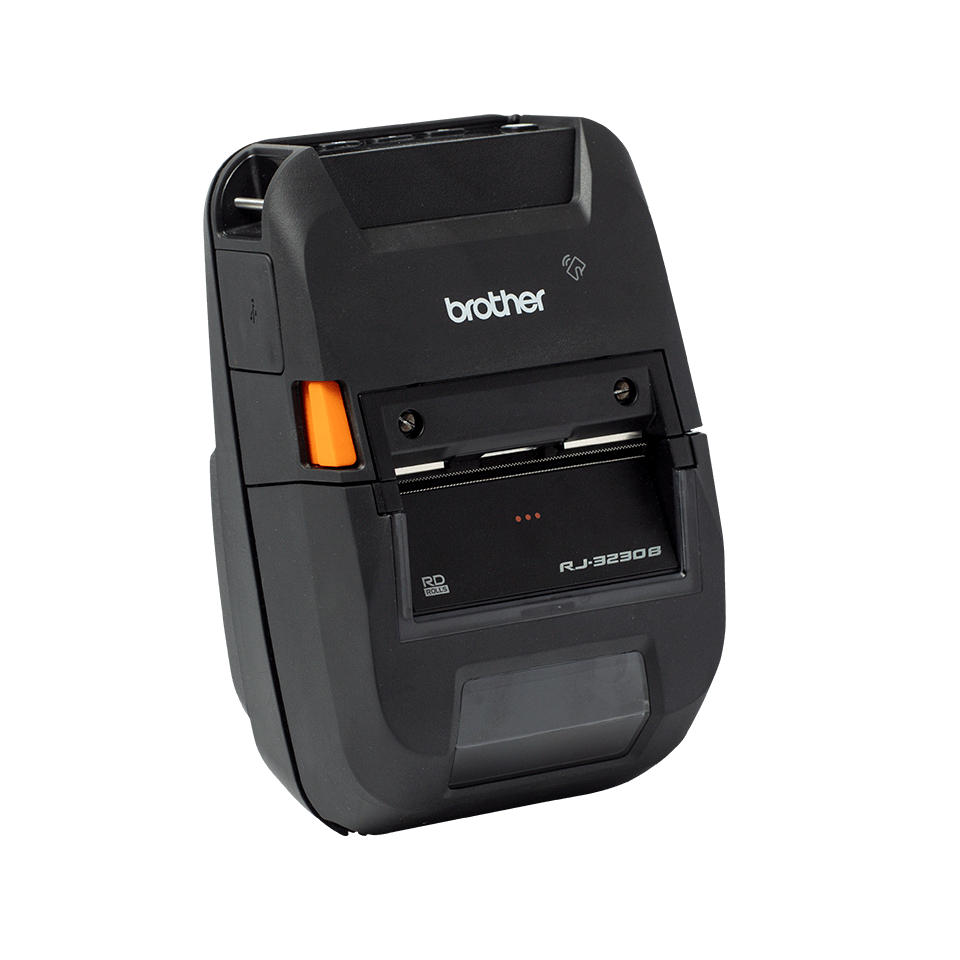

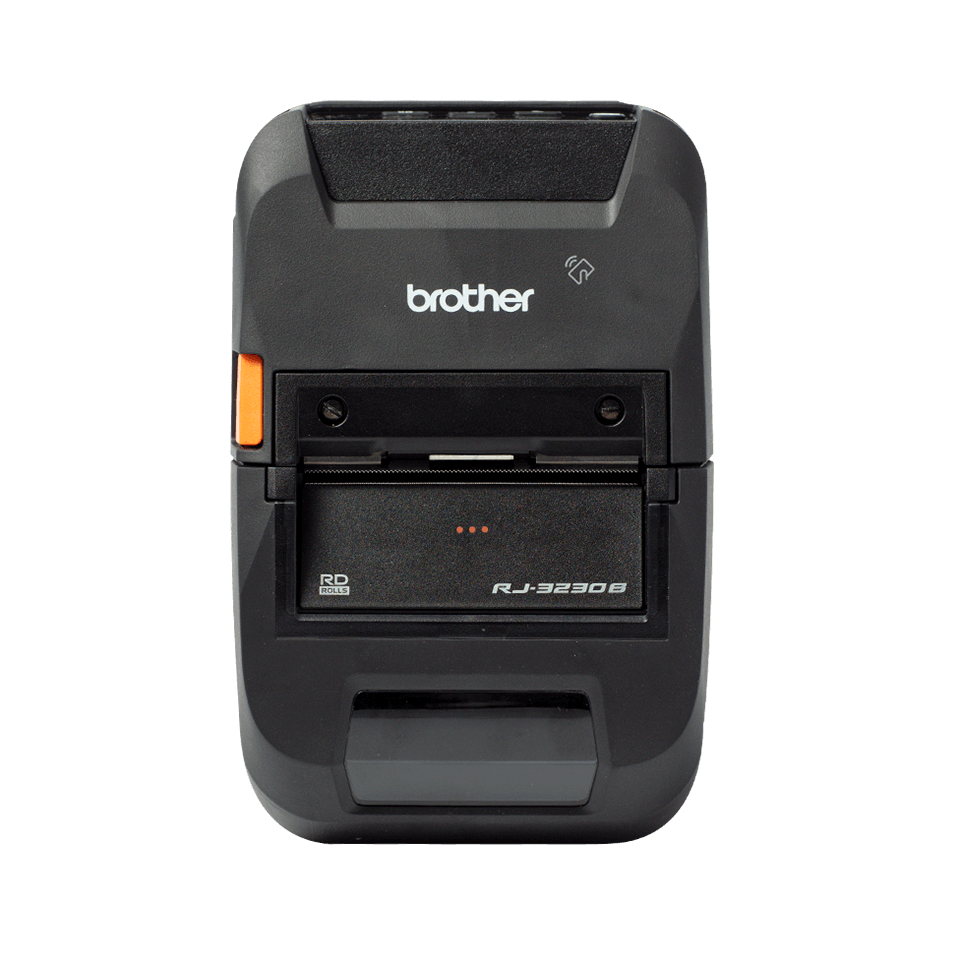

Brother RJ-3230BL rugged mobile printer with transparent background - front angle

203 dpi print resolution

Long-lasting smart Li-ion battery

Range of accessories for customisation needs

Key features

  • In-built durability with IP54 certification and up to 2m drop protection
  • USB-C, NFC and Bluetooth connectivity
  • Fast print speeds of up to 5ips (127mm/sec) on the move
  • 203 dpi print resolution
  • Long-lasting smart Li-ion battery
  • Range of accessories for customisation needs

About Product:

The RJ-3230BL mobile printer offers a fast print solution, designed to endure relentless usage.

With a range of accessories, you can wear the Bluetooth printer on-body or mount on a surface to suit your business needs.

This compact and portable printer is ready to support busy workforces' labelling and receipt requirements.

Compatible with

  • Bluetooth compatibility
Specifications More about this product...

Specifications

General

Usage type On body
Flash RAM 128 MB
Memory capacity 256 MB

Connectivity

Bluetooth v 5.0
Bluetooth profiles SPP, OPP, HCRP, GATT, iAP

Dimensions & weights

Dimensions 117mm (W) x 180mm (D) x 77mm (H)
Weight 807 g

In the box

Belt clip Yes
Li-ion battery 3000 mAh Li-ion battery (Smart Battery)
Others Roll holder stop
Quick setup guide Yes

Operating systems & software

Android v6 and higher
iOS Yes
Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 7, Windows 8.1, Windows 10

Printing

1 dimensional barcode symbologies CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5 (Supported barcodes depend on printer command, please refer to the command reference for details)
2 dimensional barcode symbologies QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 DataBar (Supported barcodes depend on printer command, please refer to the command reference for details)
Maximum print length 3000 mm
Maximum print width 72 mm
Resolution (dpi) 203
Standard print speed 127 mm per second
Supported commands Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 2-year Warranty
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

In-built durability

With 2m metre drop protection, IP54 rating against dust and moisture and an elastomer covering to protect from any knocks - the RJ-3200 printers are suitable for a range of applications in retail and field workforce.

Recharge and relax

Experience easy updates that can take place overnight whilst the printers are charging - keeping your printers working at their best, ready for the next shift (with optional accessory PACR005 or PA4CR003).

Batteries that can keep up

The smart Li-Ion battery, included as standard with RJ-3200 printers, is designed to last a full shift.

Reduce downtime with a display indicator to keep you updated on the battery health status and power save mode to preserve battery life.

"At your side" warranties

The RJ Series comes with Brother's three year return-to-base warranty as standard so you know we have you covered.
