HL-L5100DN

Workgroup networked mono laser printer.

View Videos (1)
View Videos (1)
HL-L5100DN
HL-L5100DN 2
HL-L5100DN 3
HL-L5100DN 4

Find a local store
  • Warranties

Fast print speeds of up to 40ppm

Combined paper input of 820 sheets

Automatic 2-sided printing

Product Details

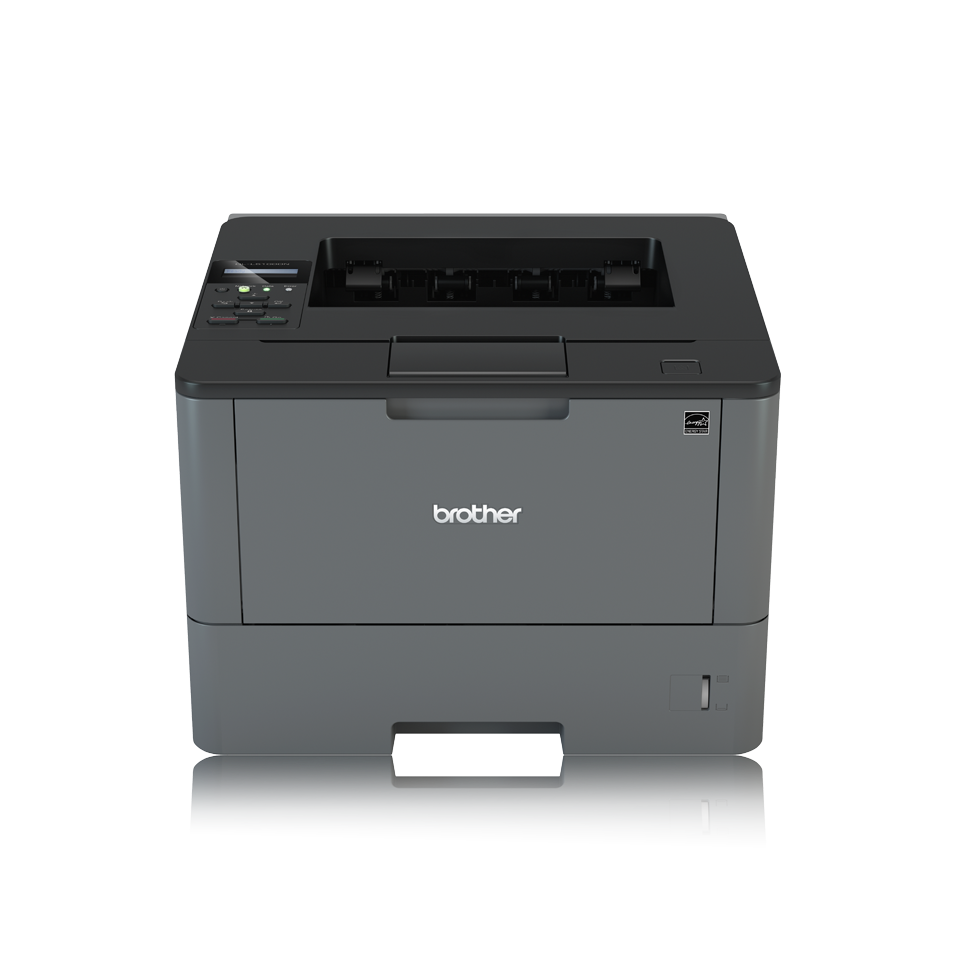

HLL5100DN_main

High yield replacement cartridges - optional high yield 8,000 (approx) page toner cartridge

1 line, 16 character backlit LCD display

High-speed wired (10Base-T/100Base-TX/) and USB 2.0 connectivity

Key Features

  • Fast print speeds of up to 40ppm
  • Combined paper input of 820 sheets
  • Automatic 2-sided printing
  • High yield replacement cartridges - optional high yield 8,000 (approx) page toner cartridge
  • 1 line, 16 character backlit LCD display
  • High-speed wired (10Base-T/100Base-TX/) and USB 2.0 connectivity

About Product:

The hardworking HL-L5100DN mono laser printer is a great starting point for any users that demand high print performance from a small unit.

Compatible with

  • Mobile device compatible icon
  • Nordiske svanemærke
  • iPrint & Scan
Specifications More about this product...

Specifications

General - Printers

Printer type Mono
Display Backlit LCD
Display size 16 characters x 1 line
Laser classification Class 1 Laser Product (IEC 60825-1:2007)
Max paper size A4
Memory 256MB
Processor Cortex-A9 800MHz
Technology Laser
Functions Print

Connectivity

Connectivity Wired Network
Local interface Hi-Speed USB 2.0
Wired network interface Ethernet (10Base-T/100Base-TX)

Mobile connectivity

Supported AirPrint, Android Print Service Plugin, Cortado Cloud Print™, Google Cloud Print 2.0, iPrint&Scan, Mopria

Dimensions & weights

With carton 485 (w) x 450 (d) x 377 (h) mm
With carton 13 kg
Without carton 373 (w) x 388 (d) x 255 (h) mm
Weight 10.7 kg

Environmental

Sound power Printing 6.90BA, Quiet mode printing 6.47BA, Ready mode up to 4.70BA
Sound pressure Printing 52dbA, quiet mode printing 50dbA, ready mode up to 34dbA
Blue Angel environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Typical electrical consumption 0.52KWh/Week

In the box

Contents Power supply cord, Product safety guide, Software disc, Supplies, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard & Optional Trays – plain, recycled, coloured and letterhead paper (between 60 - 120gsm). Multi Purpose Tray - plain, recycled, bond, coloured and letterhead paper (between 60 - 200gsm). 2-sided Print - plain, recycled, coloured and letterhead paper (between 60 - 105gsm)
Weights Standard Tray - A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal. Optional Tray - A4, Letter, A5, Executive, Legal, Folio, Mexico Legal, India Legal. Multi Purpose (MP) Tray - Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. 2-sided Print – A4

Network

Wired network security SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3, Kerberos, IPsec, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

Operating systems & software

Software supplied - Mac OS X : 10.8 or greater
Supported Windows®: Windows 10® (32 & 64 bit editions), Windows 8® (32 & 64 bit editions),Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper handing

Paper input Lower Tray – 250 sheets, Multi Purpose Tray – 50 sheets
Paper output Face Down - 150 sheets Face Up (Straight Paper Path) - 1 sheet

Printing

A4 2-sided print speed Up to 20 images per minute
A4 standard print speed Up to 40 pages per minute
Resolution Up to 1,200 x1,200dpi
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3™ Language Emulation), IBM Proprinter XL, Epson FX-850, PDF Version 1.7, XPS Version 1.0
First print out time Less than 7.2 seconds
Recommended monthly volume Up to 3,500 pages

Security features

802.1x Yes
IP filter Yes
Secure function lock v3 Yes
Secure print Yes
Secure printing with SSL Yes

Solutions

Supported AirPrint, Android Print Service Plugin,Cortado Cloud Print,Google Cloud Print 2.0,iPrint&Scan,Managed Print Services, Mopria, PrintSmart Solutions

Supplies and accessories

Accessories Optional Lower Tray LT-5500 - 250 sheets, Optional Lower Tray LT-6500 - 520 sheets, Filter Holder FH-1000(Germany only)
Supplies Inbox Toner Approx. 3,000 pages, Standard Toner TN-3430 - Approx. 3,000 pages, High Yield Toner TN-3480 - Approx. 8,000 pages, Drum DR-3400 - Approx. 50,000 A4 pages (3 pages per job) / 30,000 A4 pages (1 page per job)

Warranty

Warranty 2-year warranty
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

Brother laser printer 5000 series

Maximise Performance & Reduce Print Spend

Versatile paper handling enables you to add multiple lower trays across the range. This provides maximum device uptime, as less time is spent replenishing paper trays. With the optional high yield toner cartridges, productivity is enhanced whilst reducing your overall printing costs.

Brother laser printer 5000 series


Better reliability

Built to perform for longer and meet the demands of high output work environments, the L5000 range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.

Brother laser printer 5000 series

Tighter security

In today's business environment, we understand that organisations demand the highest levels of security. In order to address this, the L5000 range is enabled with secure function lock 3.0, 802.1x network security and Internet Protocol Security (IPsec). The range also boasts Print Archive, Secure Reset and Certificate Management.

Brother laser printer 5000 series

Flexible print solutions from Brother

Our L5000 range is designed to seamlessly integrate and meet your business requirements. Compatible with a range of print software and services, Brother Solutions can be specifically tailored to your requirements and enables you to maximise your print efficiency and minimise costs.

Eco-friendly

The L5000 range is compliant with a number of environmental standards including German Blue Angel and Nordic Swan. As a result, not only does it help your business work more efficiently, it is also more energy efficient, reducing impact on the environment and lowering your costs at the same time.
