TD-4750TNWB | Label & Receipt Printer

Ease of use with 2.3" colour LCD display

Thermal transfer and direct thermal printing technology

Range of connectivity options including USB, Network, WiFi and Bluetooth

Product Details

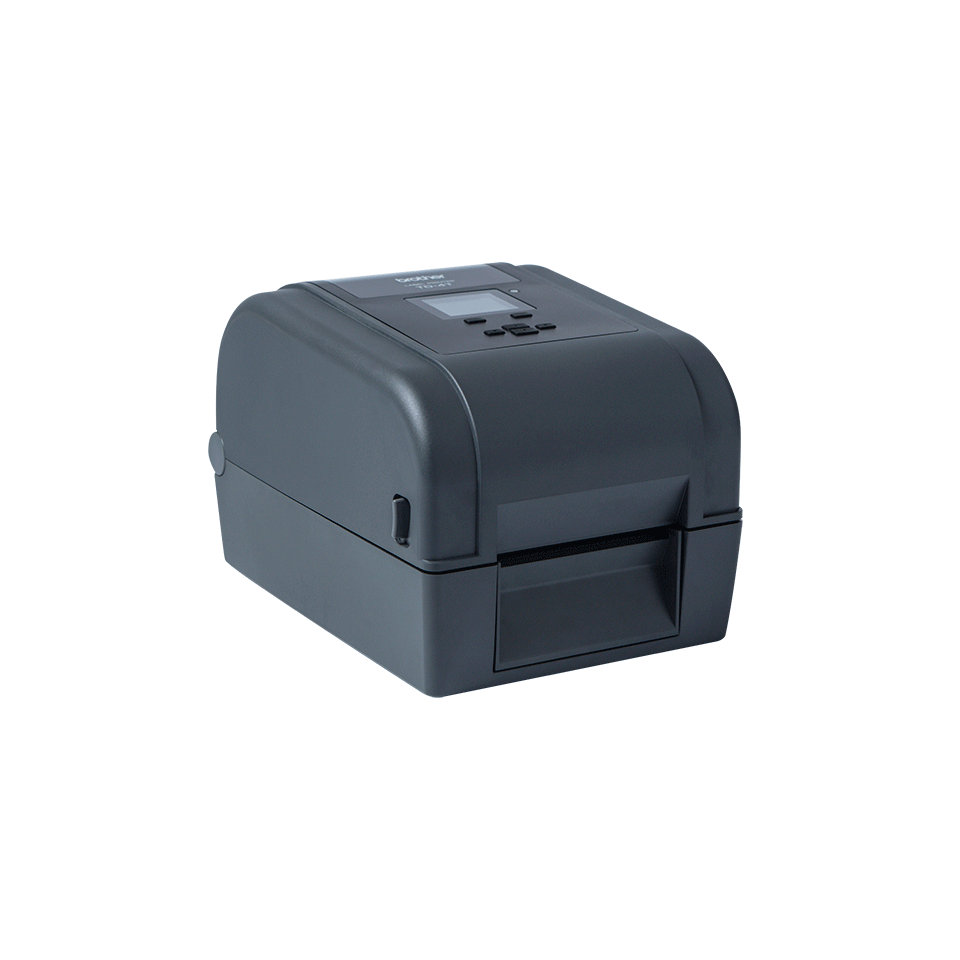

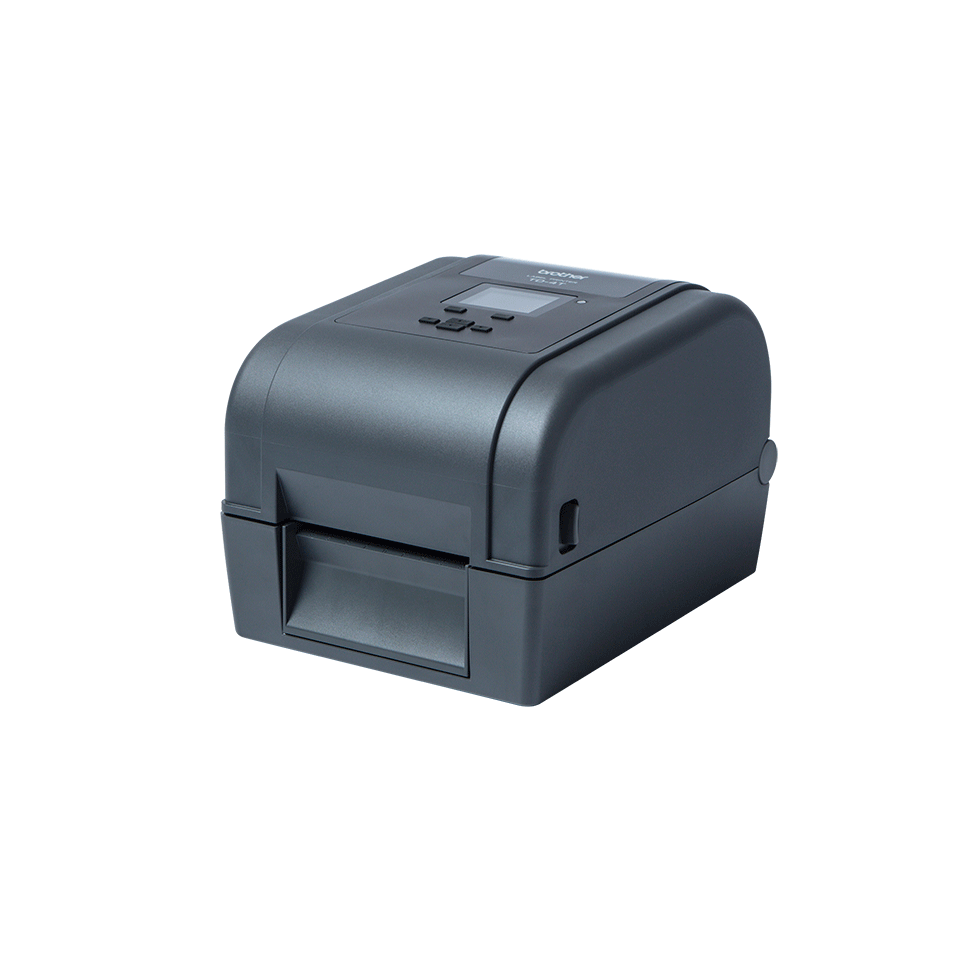

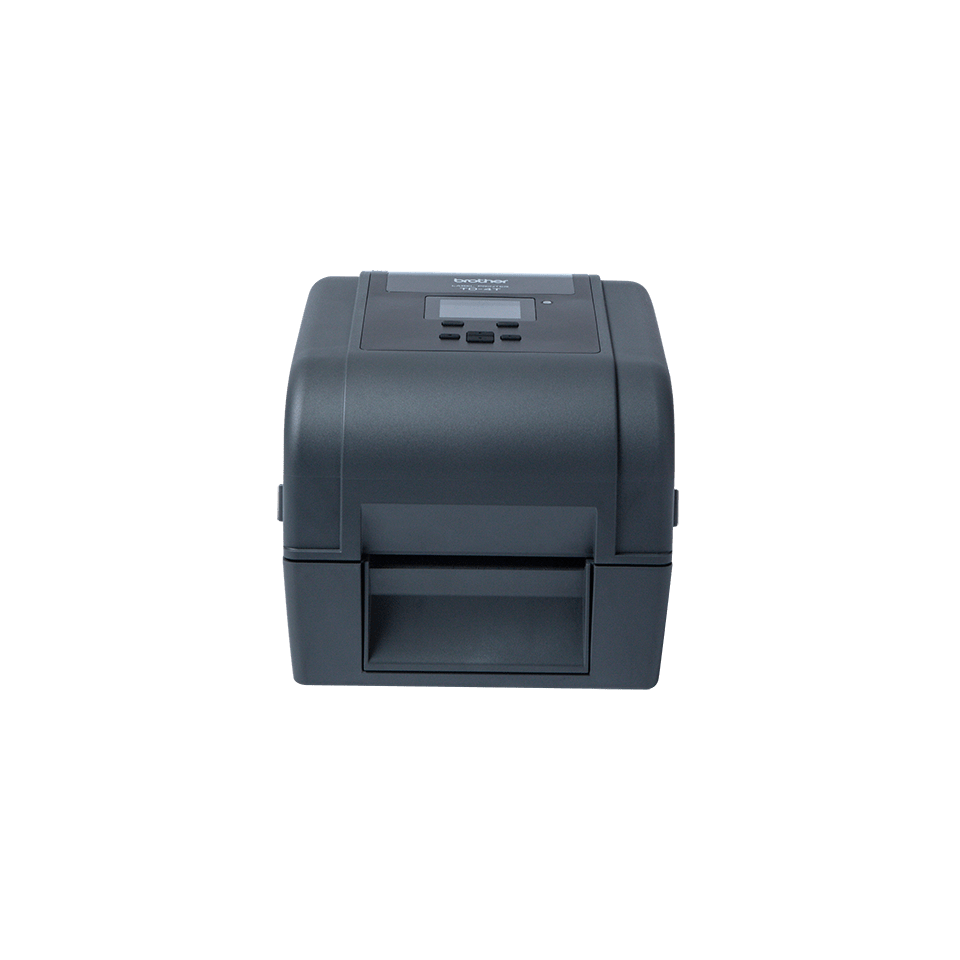

TD4750TNWB label desktop printer front with no background

High capacity with 300m ribbon, minimising downtime

300dpi high resolution printing for crisp text and barcodes

Fast print speeds up to 6 inches per second

Key features

Ease of use with 2.3" colour LCD display
Thermal transfer and direct thermal printing technology
Range of connectivity options including USB, Network, WiFi and Bluetooth
High capacity with 300m ribbon, minimising downtime
300dpi high resolution printing for crisp text and barcodes
Fast print speeds up to 6 inches per second

About Product:

The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.

Compatible with

Specifications More about this product...

Supplies & Accessories

Brother PA-RH-001 External Roll Holder for TD-4T series

External roll holder for the Brother TD-4T series label, receipt and wristband printers

Brother PA-CU-003 Label Cutter for TD-4T series

Automatic label cutter used to produce labels of various lengths by using continuous label rolls.

Brother PA-LP-004 Label Peeler for TD-4T series

Automatic label peeler that improves worker efficiency by removing the backing from the labels when printed. Compatible with TD-4T series label printers.

Show more +

Show Less -

Premium Coated Thermal Transfer Die-Cut Label Roll BCS1J074102121

The BCS1J074102121 premium coated die-cut label roll, measuring 102mm x 74mm and containing 1,100 labels per roll has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 6.

Premium Coated Thermal Transfer Die-Cut Label Roll BCS1J150102121

The BCS1J150102121 premium coated die-cut label roll, measuring 102mm x 150mm and containing 550 labels per roll has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 6.

Uncoated Thermal Transfer Die-Cut White Label Roll BUS1J074102121

The BUS1J074102121 uncoated die-cut label roll, measuring 102mm x 74mm and containing 1,100 labels per roll has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 6.

Uncoated Thermal Transfer White Die-Cut Label Roll BUS1J150102121

The BUS1J150102121 uncoated die-cut label roll, measuring 102mm x 150mm and containing 550 labels per roll has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 6.

Standard Wax Thermal Transfer Black Ink Ribbon BWS1D300110

The BWS1D300110 standard wax thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Wax Thermal Transfer Black Ink Ribbon BWP1D300110

The BWP1D300110 premium wax thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Wax/Resin Thermal Transfer Black Ink Ribbon BSS1D300110

The BSS1D300110 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Wax/Resin Thermal Transfer Black Ink Ribbon BSP1D300110

The BSP1D300110 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Resin Thermal Transfer Black Ink Ribbon BRS1D300110

The BRS1D300110 standard resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Resin Thermal Transfer Black Ink Ribbon BRP1D300110

The BRP1D300110 premium resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Wax Thermal Transfer Black Ink Ribbon BWS-1D300-080

The BWS-1D300-080 standard wax thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Wax Thermal Transfer Black Ink Ribbon BWP-1D300-080

The BWP-1D300-080 premium wax thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Wax/Resin Thermal Transfer Black Ink Ribbon BSS-1D300-080

The BSS-1D300-080 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Wax/Resin Thermal Transfer Black Ink Ribbon BSP-1D300-080

The BSP-1D300-080 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Resin Thermal Transfer Black Ink Ribbon BRS-1D300-080

The BRS-1D300-080 standard resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Resin Thermal Transfer Black Ink Ribbon BRP-1D300-080

The BRP-1D300-080 premium resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Wax Thermal Transfer Black Ink Ribbon BWS-1D300-060

The BWS-1D300-060 standard wax thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Wax Thermal Transfer Black Ink Ribbon BWP-1D300-060

The BWP-1D300-060 premium wax thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Wax/Resin Thermal Transfer Black Ink Ribbon BSS-1D300-060

The BSS-1D300-060 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Wax/Resin Thermal Transfer Black Ink Ribbon BSP-1D300-060

The BSP-1D300-060 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Standard Resin Thermal Transfer Black Ink Ribbon BRS-1D300-060

The BRS-1D300-060 standard resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

Premium Resin Thermal Transfer Black Ink Ribbon BRP-1D300-060

The BRP-1D300-060 premium resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 12.

LDS1N192100113N - Uncoated die-cut label roll for direct thermal technology

Uncoated die-cut label roll with 350 labels per roll in 100mm x 192mm for direct thermal technology. This product can only be purchased as a box with a total of 18 label rolls. The price is for 18 label rolls.

Show more +

Show Less -

Show All Supplies

Specifications

Buttons	Power, Feed
Display	LCD
Flash RAM	128 MB
LED	Power, Data, Error
RAM	128 MB
Technology	Thermal transfer / Direct thermal

Bluetooth	BT v4.2
Bluetooth profiles	SPP, Bluetooth Classic
Serial	RS-232
USB interface	USB,USB Host
Wi-Fi Direct	WiFi (802.11 a/b/g/n)
Wired network interface	10/100Mbps

Dimensions	219mm (W) x 191mm (H) x 284mm (D)
Weight	3 kg

Device	Yes
Software	Yes
Supplies	Yes
AC adaptor	Yes
AC adaptor power cord	Yes
Label design software	Bartender Ultra Lite Edition (downloadable) - for Windows only
Power supply cord	Yes
USB cable	Yes
Quick setup guide	Yes

Supported OS	For full list of compatible operating systems visit support.brother.com
Linux	Linux
Macintosh	Mac OS X 10.7.x, 10.8.x or higher, Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher
Windows	Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 7, Windows 8, Windows 8.1, Windows 10

1 dimensional barcode symbologies	Code128UCC, Code128 subsets A,B,C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies	CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Label detection sensor	Yes
Maximum label width	112 mm
Resolution (dpi)	300 x 300
Supported commands	FBPL-EZD (EPL2, ZPL2, DPL)
Maximum print length	11430 mm
Maximum print width	105.7 mm
Standard print speed	152.4 mm per second

SDK (Software Development Kit)	Yes

Warranty	2-Year Warranty

Show more +

Show Less -

Support & documents

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Technical Specifications

Documentation

More about this product...

TD-4T label printer on metal trolley with scanner printing labels

Ultimate productivity

Experience high-performance, thermal desktop printing labels up to 112mm in width for ultimate productivity. The TD-4750TNWB label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.

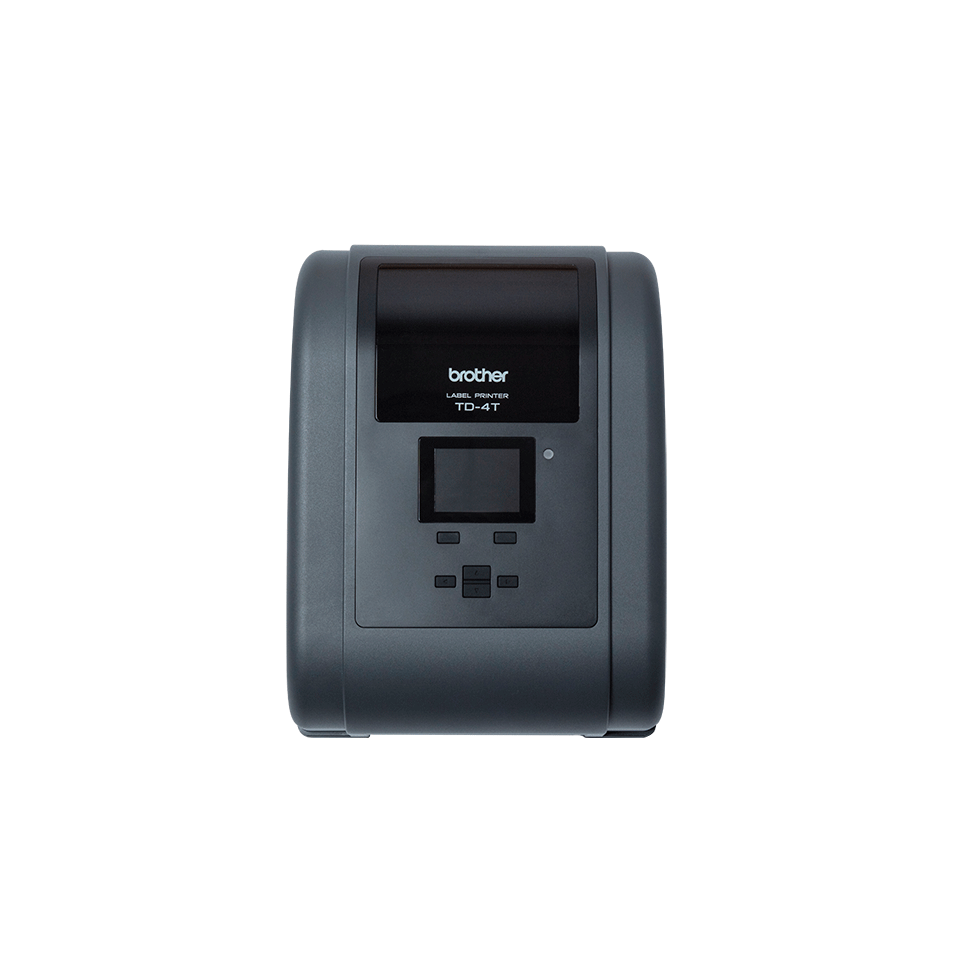

TD-4T desktop label printer screen close up with finger pressing button

Easy to use

The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.

Yellow ethernet cable being put in TD-4T printer by hand

Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWB will have no problems connecting to your existing equipment and infrastructure.

Additional connectivity includes WiFi and Bluetooth.

TD-4T desktop label printer printing shipping label

High quality thermal transfer printing

This desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.

TD-4T label printer and shipping label being placed on white box

Range of applications to suit your requirements

Suitable for a range of industries, the TD-4750TNWB thermal label printer can be used for applications in retail, healthcare, warehousing & logistics and more.

TD-4T desktop label printer with peeler cutter and external roll holder accessories

Customisation with optional accessories

The TD-4750TNWB offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
