TD-4520TN - Thermal Transfer Desktop Label Printer

Print labels using media up to 112mm wide at 300dpi high print resolution. The Brother TD-4520TN uses high capacity ink ribbons for less frequent changing and more printer up-time.

  • Error: Generic Text label 'Warranties' not set for language 'is-IS' (Site: 'MAIN-Nordics').

300dpi high resolution printing for crisp text and barcodes

Direct thermal printing and thermal transfer print using high capacity ink ribbons

Up to 127mm/second print speed

Product Details

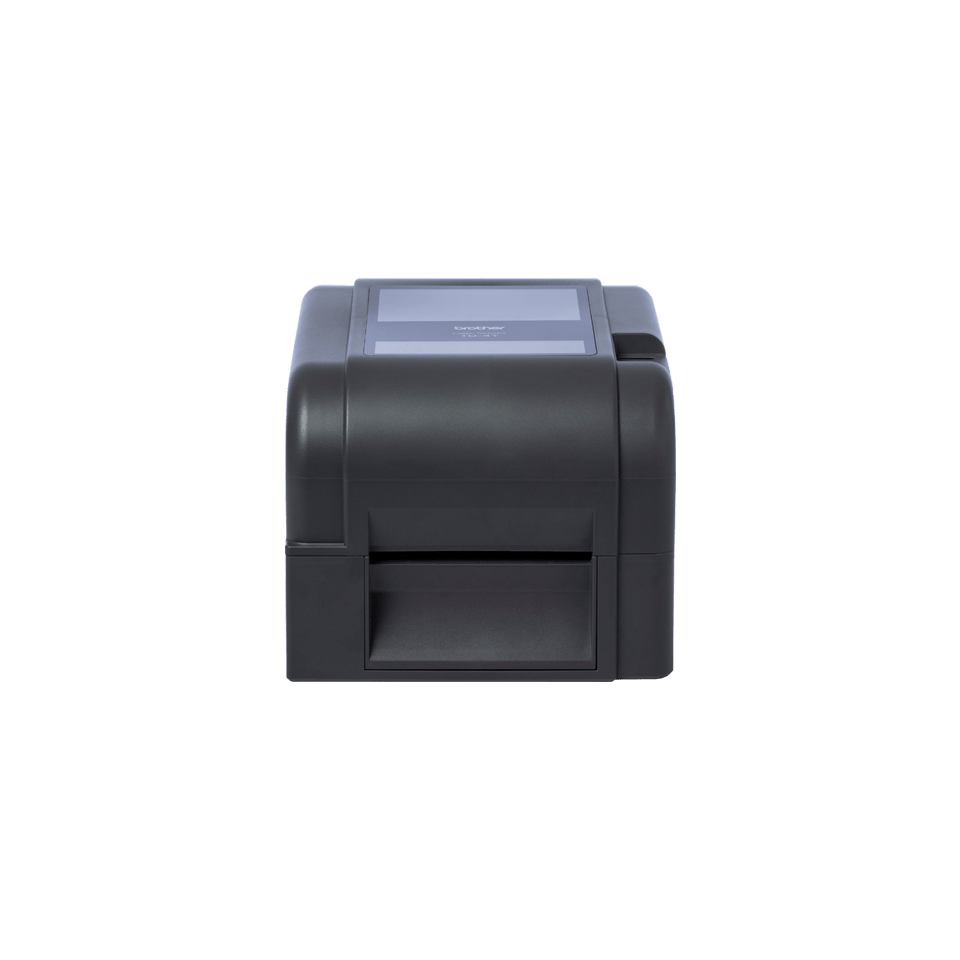

TD-4520TN label printer front view

USB, wired ethernet and serial ports as standard

Supports popular printer languages including ZPL/ZPL2, EPL and DPL

Free label design software available via download

Key Features

  • 300dpi high resolution printing for crisp text and barcodes
  • Direct thermal printing and thermal transfer print using high capacity ink ribbons
  • Up to 127mm/second print speed
  • USB, wired ethernet and serial ports as standard
  • Supports popular printer languages including ZPL/ZPL2, EPL and DPL
  • Free label design software available via download

About Product:

This versatile high resolution desktop barcode printer uses high capacity thermal transfer ink ribbons for durable labelling. Seamlessly integrates with existing systems with its industry standard embedded printer commands. A range of accessories further allows full customisation to your exact requirements.

Supplies & Accessories

Show more +
Show Less -

Specifications

General

Buttons Feed
Flash RAM 128 MB
LED Power, Data, Error
RAM 64 MB
Technology Thermal transfer / Direct thermal

Connectivity

Serial RS-232C (DB9 female)
USB interface Type B: Ver. 2.0 High Speed | Type A: USB Host (mass storage device class)
Wired network interface 10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP clpient, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP

Dimensions & weights

Weight 2.50 kg
Dimensions (W) 204mm x (H) 178mm x (D) 280mm

In the box

Device Yes
Software Yes
Supplies Yes
AC adaptor Yes
AC adaptor power cord Yes
USB cable Yes
Quick setup guide Yes
Label design software Bartender Ultra Lite Edition (free download) - only for Windows

Operating systems & software

Supported OS For full list of compatible operating systems visit support brother com
Linux Linux
Macintosh Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher
Windows Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 7, Windows 8, Windows 8.1, Windows 10

Printing

2 dimensional barcode symbologies CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
Bitmap fonts FBPL: 8 alpha-numeric bitmap fonts
Label detection sensor Yes
Maximum label width 112 mm
Maximum print length 11430 mm
Outline/Vector fonts Monotype Image TrueType font engine with one CG Triumvirate Bold Condensed font
Resolution (dpi) 300 x 300
Standard print speed 127 mm per second
Supported commands FBPL-EZD (EPL, ZPL, ZPL2, DPL)
1 dimensional barcode symbologies Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
Maximum print width 105.7 mm

Warranty

Warranty 2-Year Warranty
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product...

Label printed on a Brother TD-4D series label printer

High quality thermal transfer printing

The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so can the Brother TD-4520TN label printer.

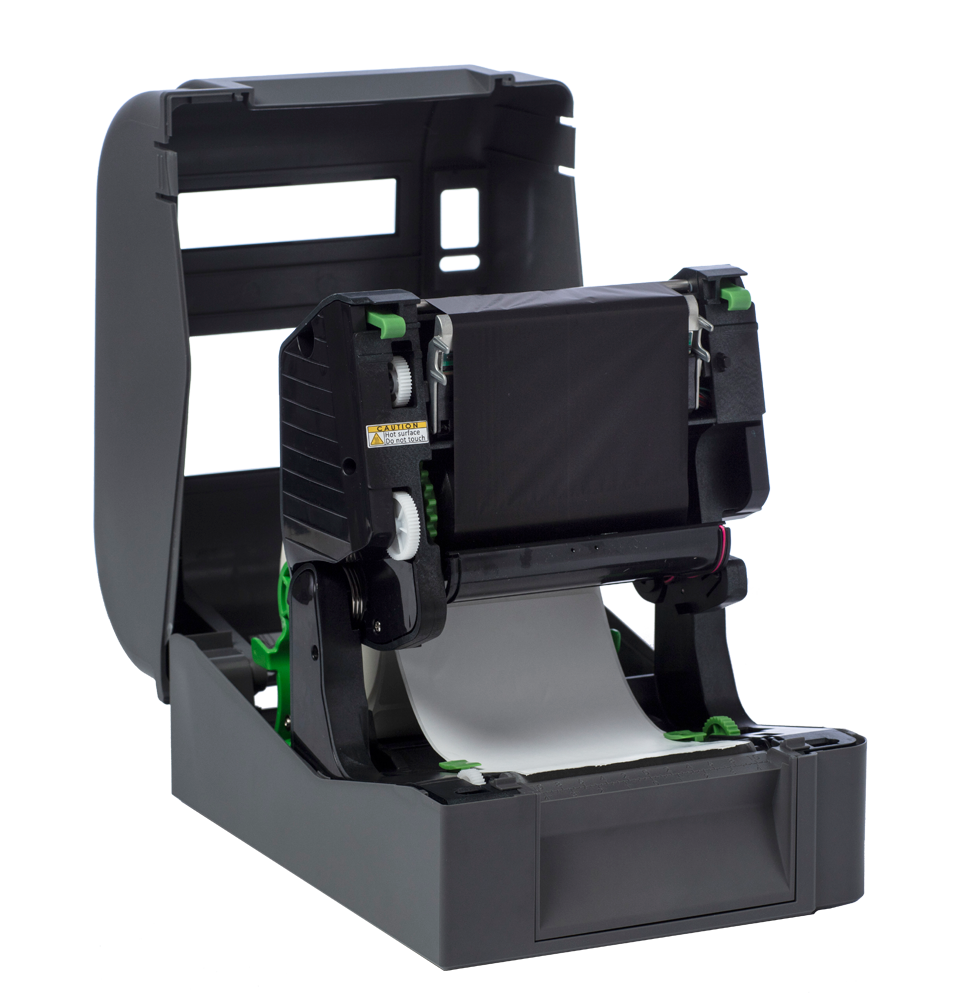

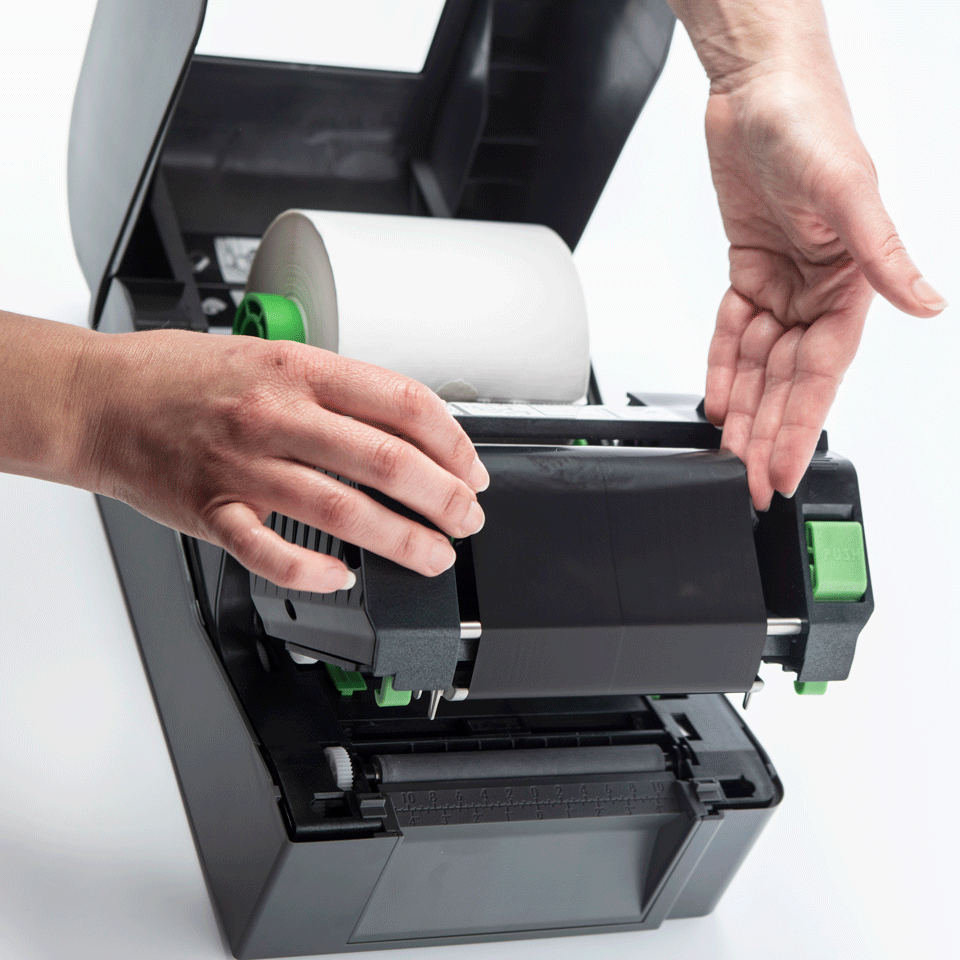

Thermal transfer ink ribbon being installed in a TD-4D label printer

High capacity thermal transfer print ribbons in various materials depending on application

Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

Label printed on a Brother TD-4D series label printer.

Industry standard printer commands, as standard

Print from Windows using the standard printer driver, or integrate the Brother TD-4520TN label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.

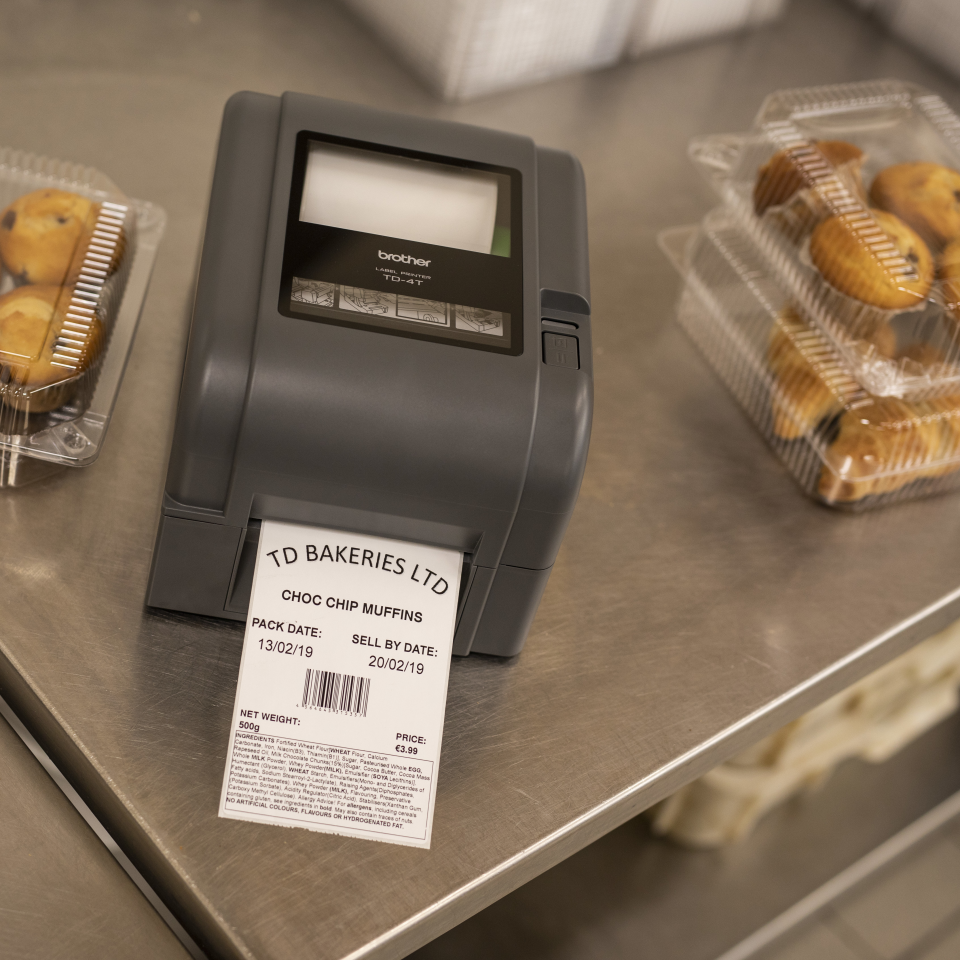

Brother TD-4D label printer on steel table next to cakes in a bakery

Fast print speed and processing to improve efficiency

A fast print speed of 127mm/second (5 inches per second) means less time waiting for your labels to print and more time being productive.

Ethernet cable being plugged into the rear port of a Brother TD-4D label printer

Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4520TN will have no problems connecting to your existing equipment and infrastructure.

Option roll holder installed on a Brother TD-4D label printer

Optional accessories to further improve productivity

Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.
