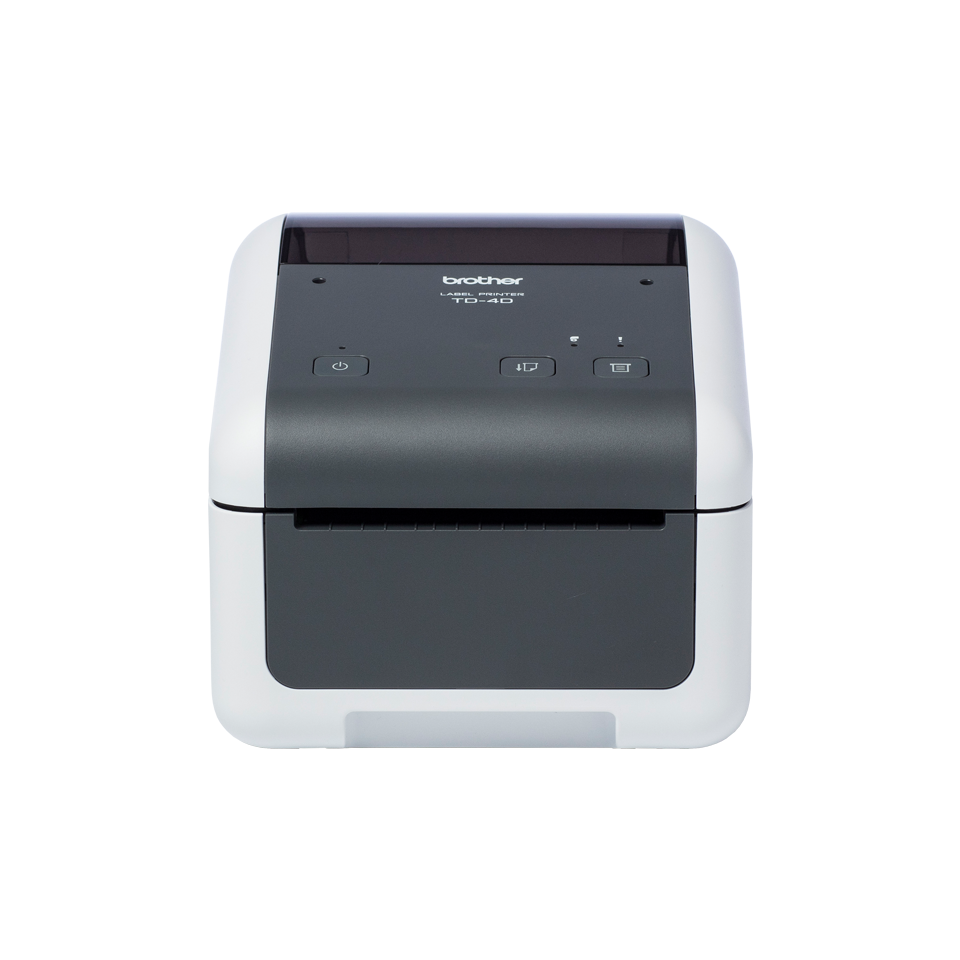

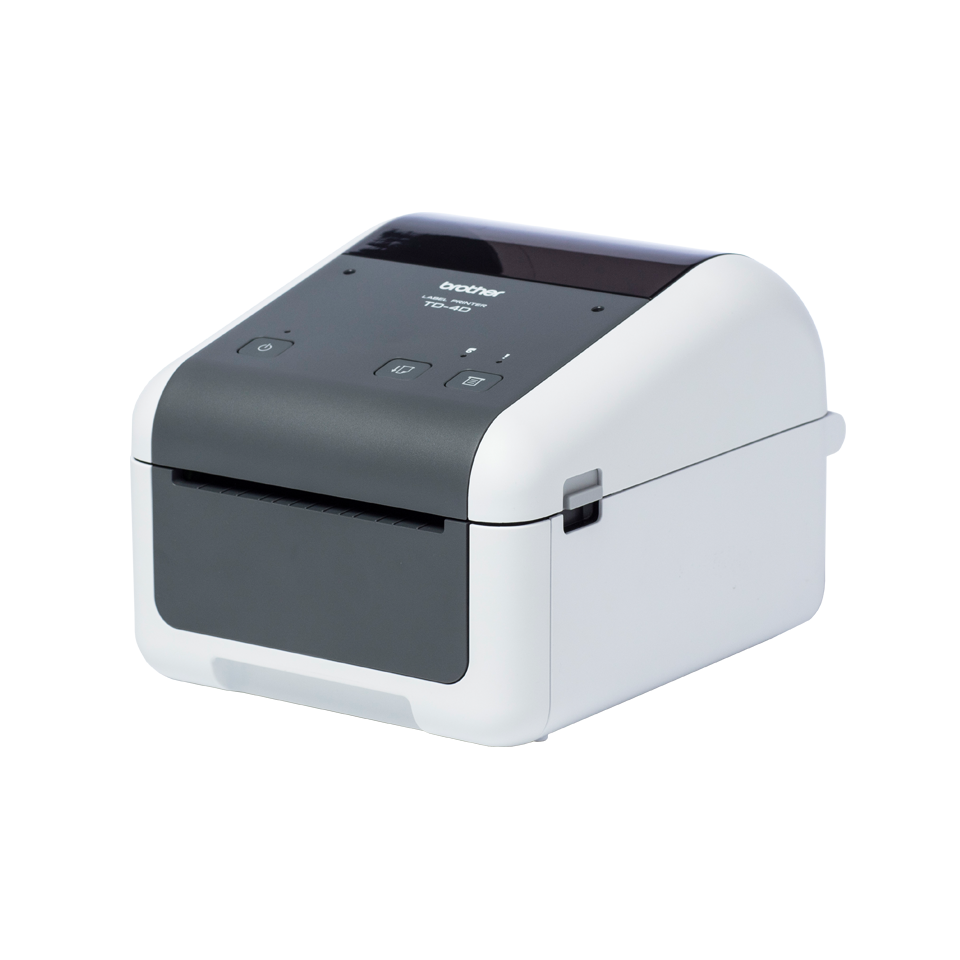

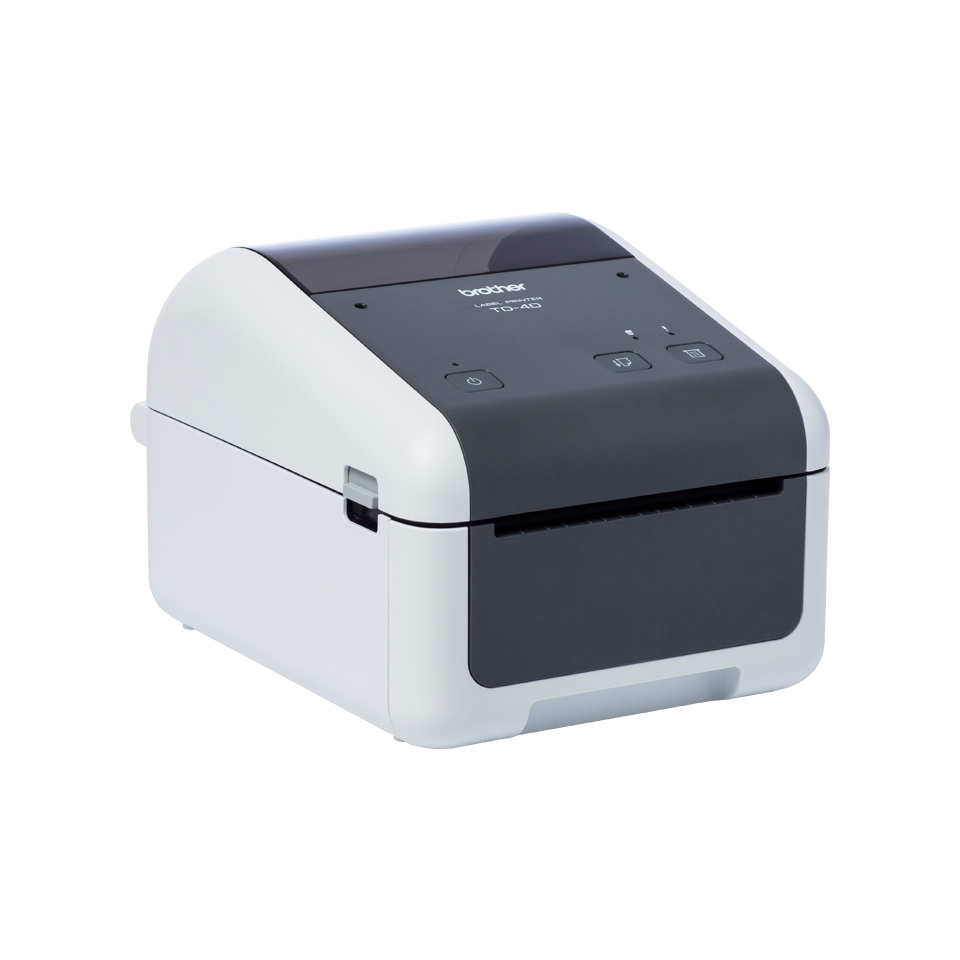

Brother TD-4520DN Professional Network Desktop Label Printer

Print high-quality, continuous labels using media up to 118mm/4.65 inches wide. With built-in network for easy sharing.

Compatible with

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes.

The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions.

With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Key Features

  • Network connectivity
  • Professional quality up to 300dpi print resolution
  • Fast print speeds up to 6 images per second
  • Print width up to 4.27 inches/108mm
  • Easy set-up with automatic media configuration
  • Ready to integrate with iOS and Android apps

Warranties

Overview


Brother TD-4520 network desktop label printer on wooden desk with shipping notes on clipboard

Crop function

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.

Brother TD-4520DN desktop label printer in hospital printing patient details label

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Man wearing hi-vis in warehouse printing label from Brother TD-4520DN

Print from your Windows PC

Create customer labels using Brother P-touch Editor. You can easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Back of Brother TD-4520 network desktop label printer showing network power vga ports

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.
Brother TD-4520DN network desktop label printer printing label with barcode

Software support

Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs. Software development kits available from: www.brother.eu/developer

Specification Details

Features and Specifications

Flash RAM 64 MB
Housing colour White and grey
RAM 256 MB
Technology Direct thermal
Control panel 3 button, 3 LED
LED Power, Data, Status, Error
Serial RS-232C Serial (DB9 male)
USB interface USB Ver. 2.0 (Full Speed) Type B
Wired network interface 10/100Base-TX
Dimensions 108mm (W) x 155mm (D) x 224mm (H)
Weight 2.08 kg
AC adaptor power cord Yes
USB cable Yes
Warranty card Yes
AC adaptor Yes
Software Available to download from support.brother.com
Quick setup guide Yes
Linux Linux
Android Android 4.0.3 or later
iOS
Windows Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1
Bitmap fonts Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels, Gothic
Copies 1-9999 (ESC/P P-touch Template)
Label detection sensor Yes
Maximum label width 118 mm
Maximum print length 3000 mm
Maximum print width 108 mm
Mirror printing Yes
Resolution (dpi) 300 x 300
Sequential numbering 1 - 9999 / A - Z / a - z
Standard print speed 152 mm per second
Supported commands P-touch Template, Raster, ESC/P, ZPL II emulation, CPCL emulation
Database file compatability csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Label length settings 25 mm (minimum)
Languages English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hugarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
SDK (Software Development Kit) Yes
Rolls RD rolls (die-cut and continuous)
Optional accessories Cutter, Peeler, Platen roller, Thermal print head
Warranty 3 years
