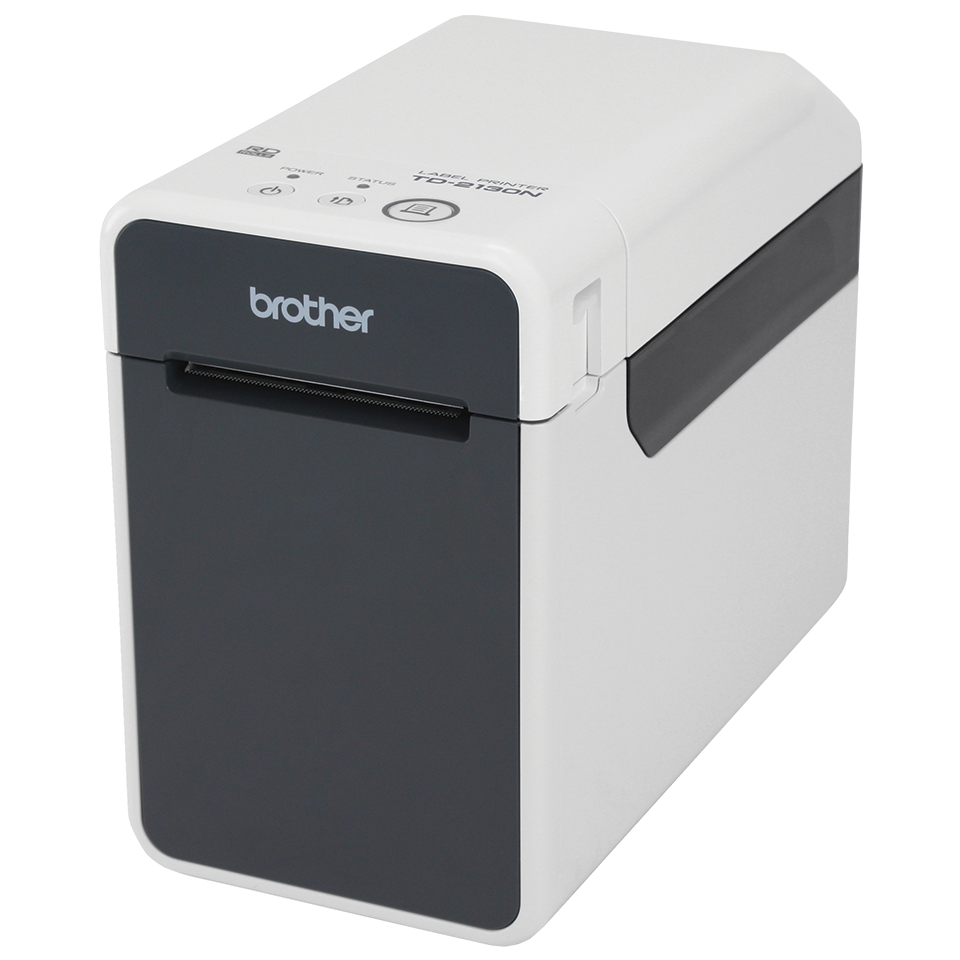

TD-2130N

The versatile, high-resolution desktop labeller with optional portability.

TD-2130N
TD-2130N 2

Find a local store
  • Warranties

High quality 300dpi print resolution

Network capability / USB & serial connectivity

ZPL II printer language emulation

Product Details

TD2130N

Up to 152.4mm/second print speed

32MB RAM, 16MB Flash

Key Features

  • High quality 300dpi print resolution
  • Network capability / USB & serial connectivity
  • ZPL II printer language emulation
  • Up to 152.4mm/second print speed
  • 32MB RAM, 16MB Flash

About Product:

With a range of specialised features, the TD-2130N is the perfect label printer for warehousing, logistics, manufacturing and retail – plus any other sector where you need to be able to print receipts or labels on the move.

Compatible with

Specifications More about this product...

Specifications

General

Memory capacity 6 MB
Technology Direct thermal

Connectivity

Serial Option: RS-232C
USB interface Ver 2.0 Full Speed
Wired network interface 10/100 Base-TX
Wirelesss network interface Option: IEEE802.11 b/g/n

Dimensions & weights

Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.34 kg

In the box

AC adaptor Yes
Power supply cord Yes
Software Yes
USB cable Yes
User guide Yes
Quick setup guide Yes

Network

Wireless network Option: IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode

Operating systems & software

Windows Windows Server 2003 & 2008 (32 & 64 bits), Windows XP, Windows Vista, Windows 7, Windows 8

Printing

Bitmap fonts Up to 10 (depending on emulation used)
Copies 1-999 (P-touch Template mode)
Maximum print length 1000 mm
Maximum print width 56 mm
Outline/Vector fonts Up to 4 (depending on emulation used)
Resolution (dpi) 300 x 300
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0, Raster, ESC/P

P-touch Editor label design software

Date and time stamp Date and time
Fonts All installed truetype fonts
Languages English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround

Solutions

SDK (Software Development Kit) Yes

Supplies and accessories

Optional accessories Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Label Peeler (PA-LP-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001)
Rolls RD rolls (die-cut and continuous)

Warranty

Warranty 2-Year Warranty
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

TD-2130N Professional Barcode Network Label Printer

Designed for use on a cart or virtually any retail, medical or other work space, the TD-2130N is among the most compact and fastest 56mm wide powered desktop/network thermal printers for retail applications. At a higher print resolution of 300dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152,4mm/second. Also prints tags and receipts for kiosk and POS applications.

An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows Server® 2012/2008R2/2008/2003 and Windows® 8/7/XP drivers, (ZPL II® compatibility,) and SDK's for iOS®, Android® and Windows Mobile® helps with integration into existing retail solutions.
