QL-820NWBcVM - visitor badge printer

Improve site security by providing guests attending your business or events with an identification badge.

QL-820NWBcVM - visitor badge printer
QL-820NWBcVM - visitor badge printer 2
QL-820NWBcVM - visitor badge printer 3
QL-820NWBcVM - visitor badge printer 4
QL-820NWBcVM - visitor badge printer 5
QL-820NWBcVM - visitor badge printer 6
QL-820NWBcVM - visitor badge printer 7

Find a local store
  • Error: Generic Text label 'Warranties' not set for language 'is-IS' (Site: 'MAIN-Nordics').

Design and print badges using Brother P-touch Editor on your PC or Mac

Alternatively use the iPrint&Label app on your tablet to print your visitor passes

Can also be used with compatible third party visitor and event management apps and software

Product Details

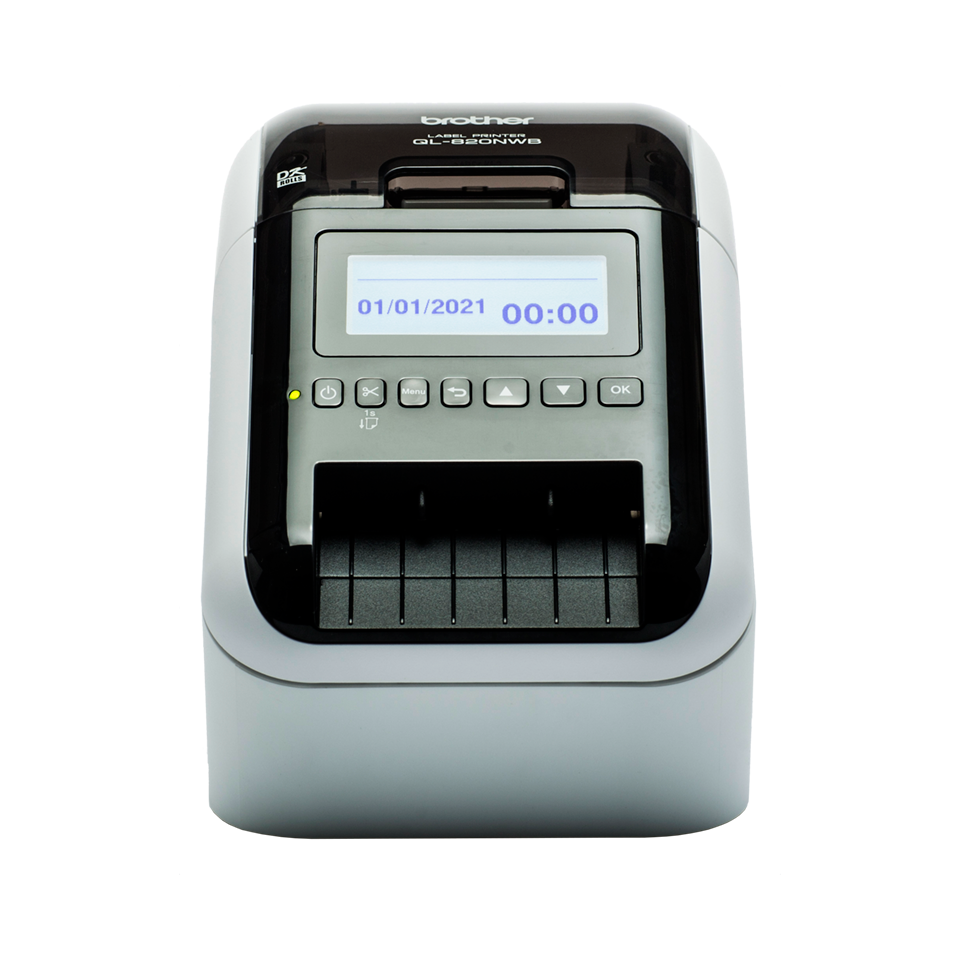

Front facing shot of the Brother QL-820NWBVM visitor and event badge label printer

USB, Ethernet, Wi-Fi and Bluetooth connectivity

Adhesive label and non-adhesive card badge rolls available

Optional rechargeable Li-ion battery base for use away from power sources

Key Features

  • Design and print badges using Brother P-touch Editor on your PC or Mac
  • Alternatively use the iPrint&Label app on your tablet to print your visitor passes
  • Can also be used with compatible third party visitor and event management apps and software
  • USB, Ethernet, Wi-Fi and Bluetooth connectivity
  • Adhesive label and non-adhesive card badge rolls available
  • Optional rechargeable Li-ion battery base for use away from power sources

About Product:

Print visitor and event badges from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth and the free Brother badge printing software and apps. Includes 3 non-adhesive card rolls to print around 1,000 badges.

Can also be used with professional visitor management apps and software from other companies that offer compatibility for this model of badge printer.

Independent Software Vendors can easily incorporate support for this printer into their own apps and solutions.

Compatible with

  • Hi-Speed USB 2.0 connection interface
  • Wifi / Wireless compatible
  • Bluetooth compatibility
  • Mobile device compatible
  • iPrint&Label logo
Specifications More about this product...

Specifications

General

Maximum label width (mm) 62
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 255
Technology Direct thermal
Template upload from PC Yes

General Supplies

Type DK rolls (DK die-cut labels / DK continuous length tape)

Connectivity

AirPrint Yes
Bluetooth Ver 5.2
MFi Yes
Bluetooth profiles SPP/OPP/HCRP
USB interface Ver 2.0 (full speed)
Wi-Fi Direct Yes
Wired network interface 10/100 BASE-TX
Wirelesss network interface IEEE 802.11 b/g/n

Dimensions & weights

Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.16 kg

In the box

AC adaptor Yes
AC adaptor power cord Yes
Tape cassettes 3 x DK-N55224 non-adhesive card rolls (30.48 metres each)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes

Network

Wireless network security WEP, WPA-PSK/WPA2-PSK/WPA3-SAE (TKIP/AES), WPA3-SAE (AES), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)

Operating systems & software

Macintosh Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher, Mac OS X 10.15.x or higher, Mac OS X 11 x or higher
Windows Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11

Printing

1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION
Black and red printing capability Yes
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 62 mm
Maximum print width 58 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300, 300 x 600
Standard print speed 110 labels per minute
Standard print speed 176 mm per second

P-touch Editor label design software

Database file compatability csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 1 year back to base warranty (upon registration)
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product...

QL-820NWBVM Li-ion rechargeable battery base

Optional Li-ion battery base

There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.

Black and red visitor badges printed on a Brother QL-820NWBVM badge printer

Print in black and red

The QL-820NWBcVM also enables printing in black and red over the entire printable area of the label using the Brother DK-22205 label roll, ensuring key information is highlighted such as “valid on” dates.

Brother DK-11234 visitor badge label attached directly to grey suit jacket

Direct-to-clothing labels

As an alternative to the non-adhesive roll, the Brother DK-11234 self-adhesive badge labels have been developed to stick directly to clothing. As no clip-on badge holder is required it makes it ideal for handing out to guests arriving at events. Once each guest leaves, they can simply peel off the label before disposing of it.

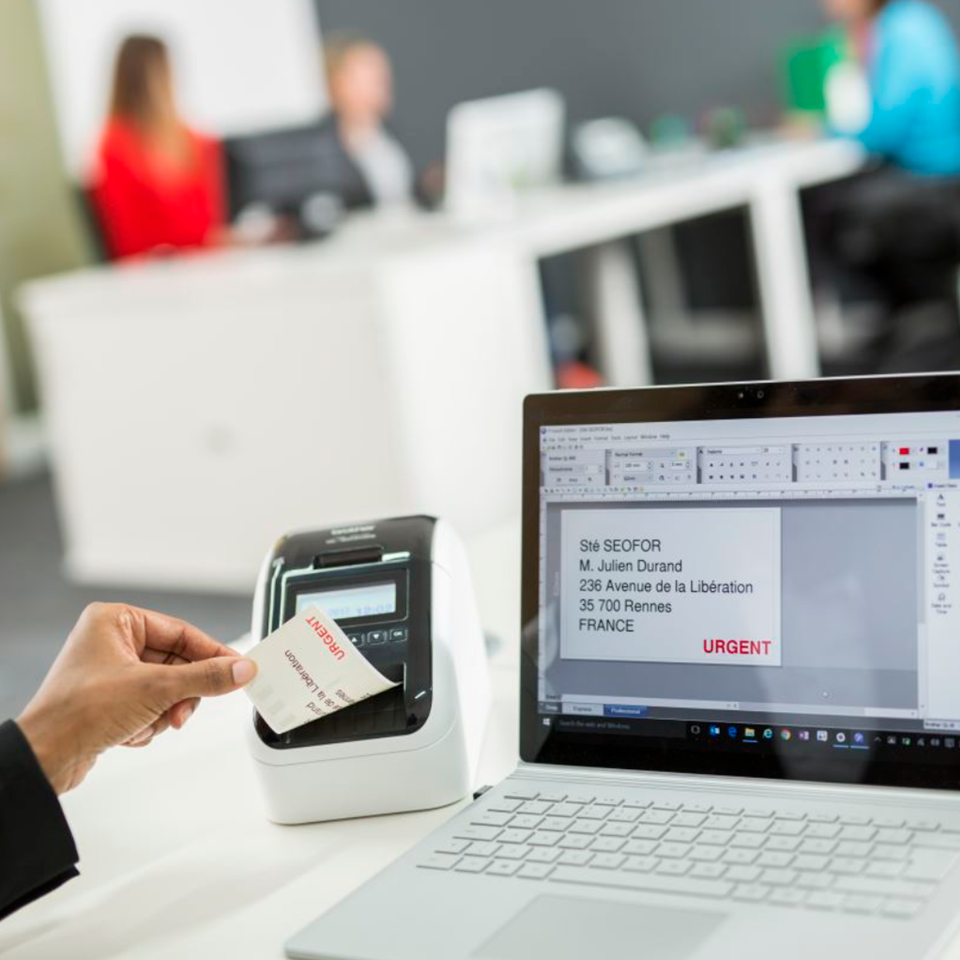

Document files identified with labels printed on a Brother QL-820NWBVM

Added versatility

In addition to visitor badges, you can also produce labels for document filing, custom signage, envelopes, packages, shelving and more.

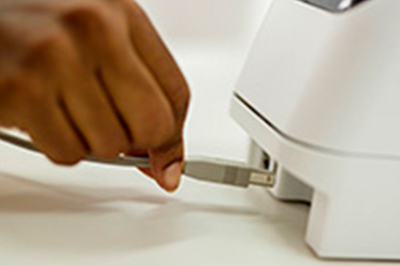

QL-820NWBVM Connectivity

Multiple connectivity options

  • USB to print locally from your PC or Mac
  • Ethernet to print remotely from your PC or Mac
  • Wi-Fi and Bluetooth® to quickly and easily connect and print from your tablet or smartphone as well as your computer
  • AirPrint and MFi certification to easily integrate into Apple products

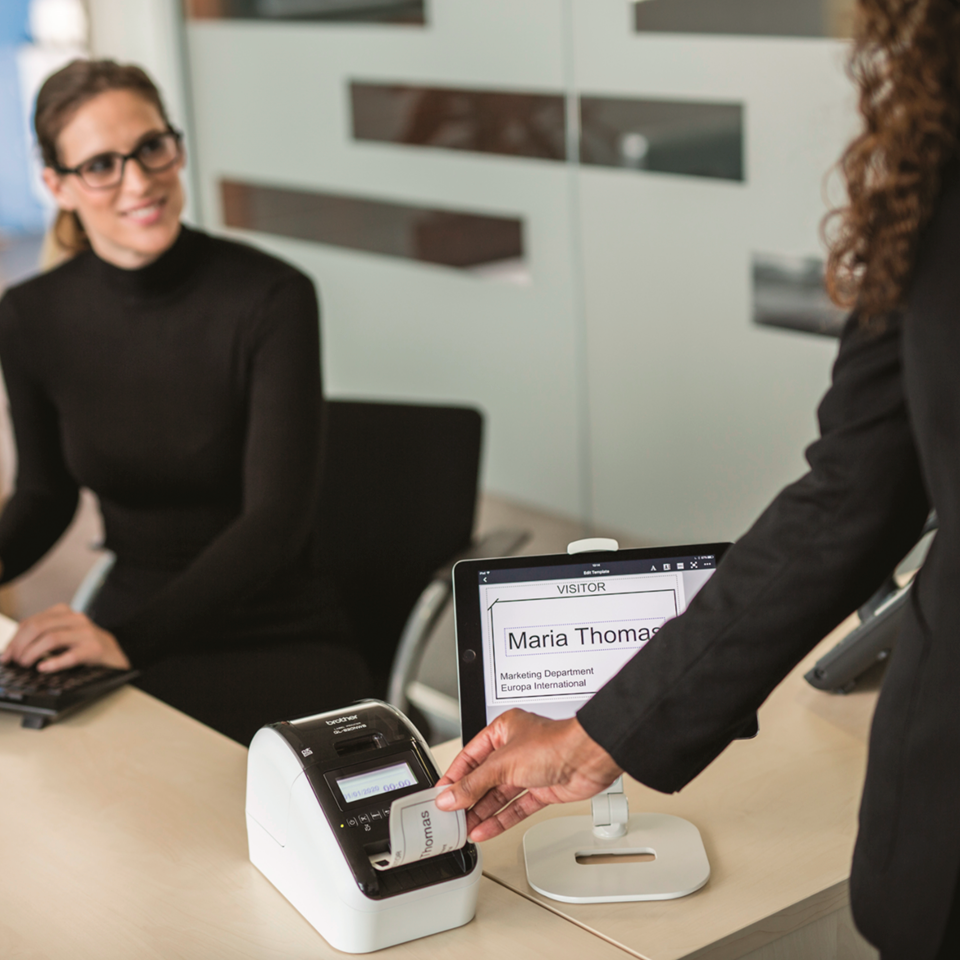

QL-820NWBVM visitor badge printer and iPad tablet

Free software and apps to design and print badges

Brother P-touch Editor label design software for PC and Mac and the Brother iPrint & Label app for iOS and Android are available for download to design visitor and event passes containing text, frames, logos, images and barcodes. Simply edit your visitor's details and print your badges on demand.
